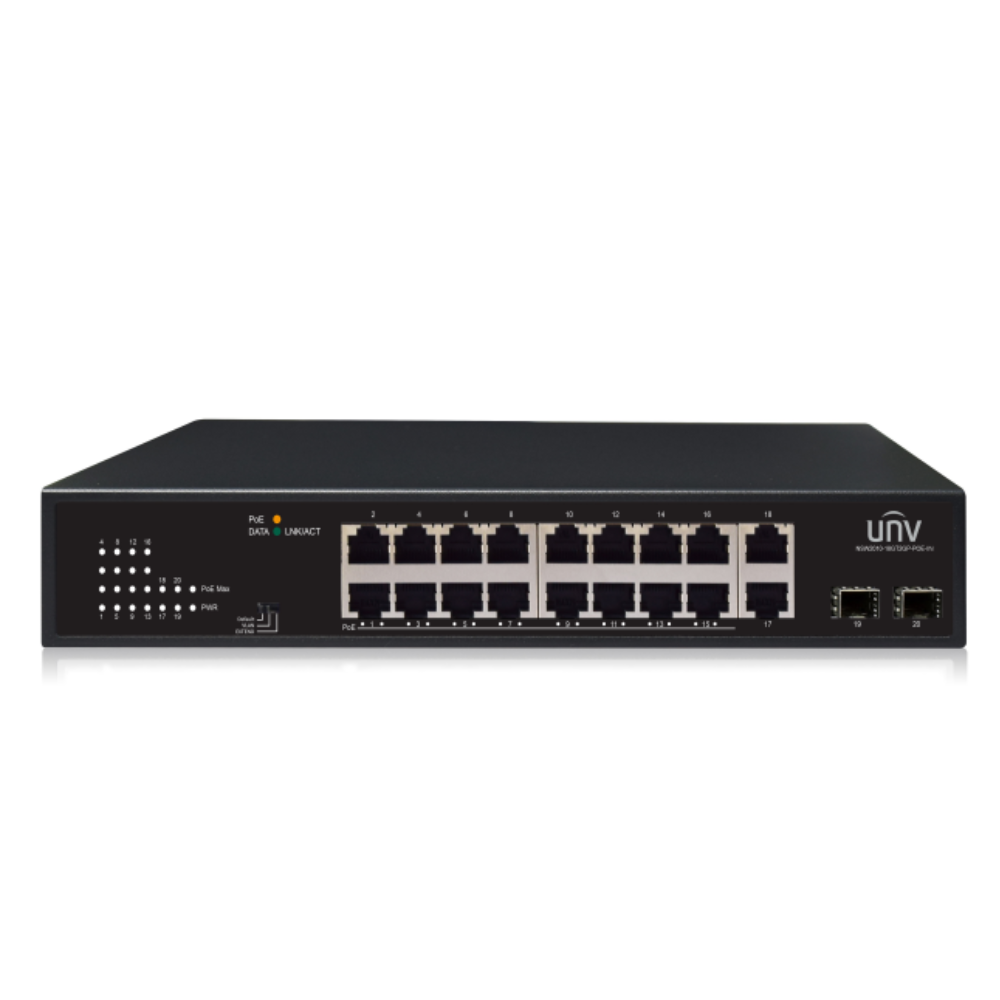

Uniview Ethernet Switch(POE) - NSW2010-18GT2GP-POE-IN

Uniview Ethernet Switch(POE) - NSW2010-18GT2GP-POE-IN

$569.00 USD
$569.00 USD
Sale Sold out
Shipping calculated at checkout.

Enhance your network with the Uniview Ethernet Switch(POE) - NSW2010-18GT2GP-POE-IN. This powerful switch offers 18 gigabit Ethernet ports, capable of delivering lightning-fast speeds for all your devices. With PoE support, you can easily power your devices without the need for additional adapters. Perfect for businesses and home networks alike.

Features

• Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
• Supports PoE Power up to 30W for each PoE port;
• Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
• Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
• Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
• Line-speed forwarding, intelligent identification
• Supports storage – and- forward for Data exchange;


Specifications

Hardware Specification
Ports Type 16×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（SFP）
Standards IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity 40Gbps
MAC 8K
Packet Buffer 4M bit
Forwarding performance 29.76Mpps
Power supply AC: 100-240 V, 50/60 Hz
PoE support POE
Max. PoE Power Max capacity: 185W,
Max capacity for single port: 30W
Cooling Fans 1
Weight <4.2 kg
Indicator PWR (Green), LNK/ACT (Green), PoE (Orange)
Storage Temperature -40 °C ~ 70 °C
Operating temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Operating humidity 10%～90% (noncondensing)
Storage humidity 5%～90% (noncondensing)
Dimensions (W×D×H) 280mm x 180mm x 44mm
(11"×7.1"×1.7")
Working Mode Default(Normal mode) : All ports can communicate with each other., VLAN(Secure mode): Downlink ports can communicate only with uplink ports.,
Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
