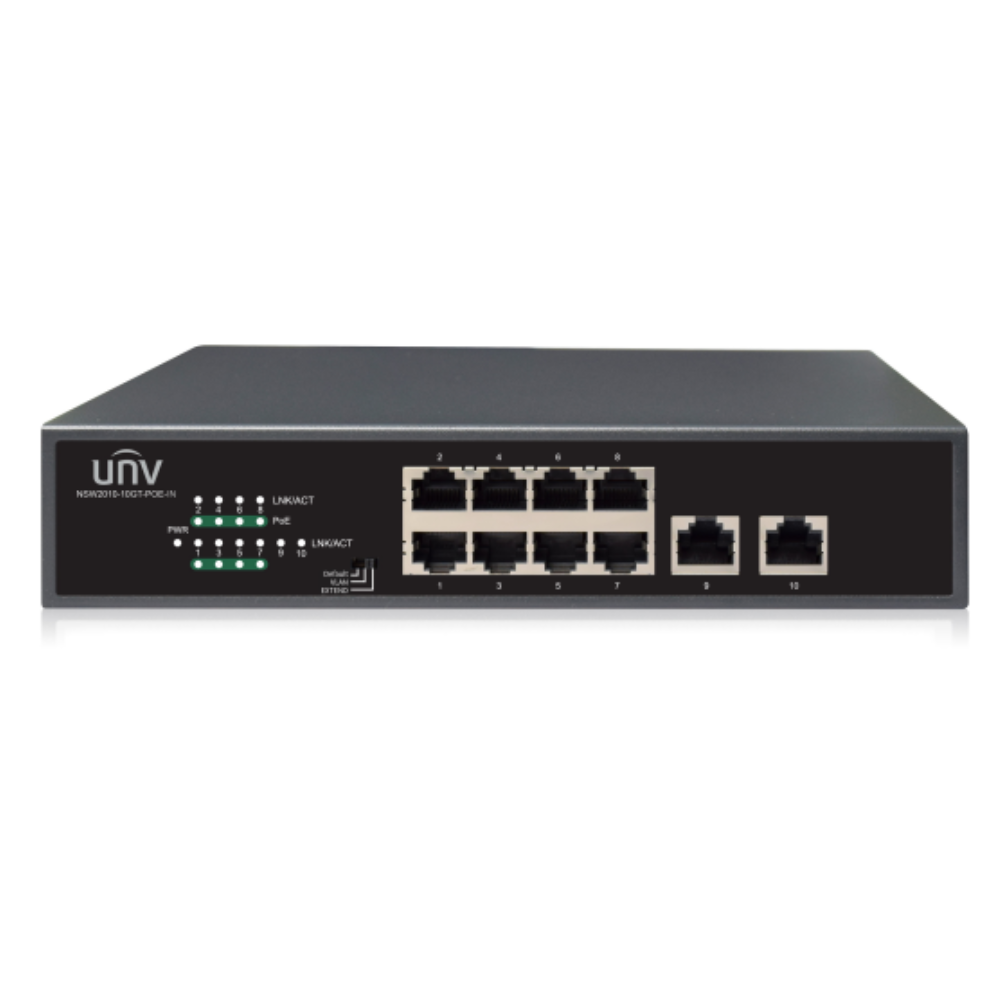

Uniview Ethernet Switch(POE) - NSW2010-10GT-POE-IN

Uniview Ethernet Switch(POE) - NSW2010-10GT-POE-IN

$269.00 USD
$269.00 USD
Sale Sold out
Shipping calculated at checkout.

The Uniview Ethernet Switch(POE) - NSW2010-10GT-POE-IN provides reliable and efficient network connectivity for various devices. With Power over Ethernet technology, it delivers power and data over a single cable, reducing the need for additional power sources. This switch is perfect for businesses looking to streamline their network setup and improve overall functionality.

Features

• Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
• Supports PoE Power up to 30W for each PoE port;
• Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
• Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
• Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
• Line-speed forwarding, intelligent identification
• Supports storage – and- forward for Data exchange;


Specifications

Hardware Specification
Ports Type 8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)
Standards IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity 20Gbps
Packet Buffer 2M bit
Forwarding performance 14.88Mpps
MAC 2K
Max. PoE Power Max capacity: 120W,
Max capacity for single port: 30W
Power supply AC: 100-240 V, 50/60 Hz
PoE support POE
Cooling Fans 1
Weight <1.24kg
Indicator PWR (Green), LNK/ACT (Green), PoE (Orange)
Storage humidity 5%～90% (noncondensing)
Operating humidity 10%～90% (noncondensing)
Dimensions (W×D×H) 220mm x 150mm x 44mm
(8.7"×5.9"×1.7")
Storage Temperature -40 °C ~ 70 °C
Operating temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Working Mode Default(Normal mode) : All ports can communicate with each other., VLAN(Secure mode): Downlink ports can communicate only with uplink ports.,
Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
