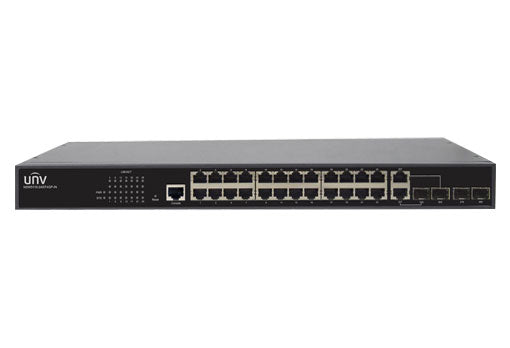

Uniview Ethernet Switches - NSW5110-24GT4GP-IN
Uniview Ethernet Switches - NSW5110-24GT4GP-IN
Regular price
$799.00 USD
Regular price
Sale price
$799.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Introducing Uniview Ethernet Switches - NSW5110-24GT4GP-IN. This advanced switch offers 24 gigabit ports and 4 gigabit combo ports for seamless network connectivity. With a reliable and efficient performance, this switch is perfect for businesses and organizations looking to boost their network capabilities. Trust in Uniview for top-of-the-line Ethernet switches.
Features
- Support RJ45 Auto-MDI/MDIX;
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az);
- Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
- Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
Specifications
| Model | NSW5110-24GT4GP-IN |
| Ports | 24×1000Mbps ports (RJ45)+2×1000Mbps Fiber(SFP) ports+2G Combo ports |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z,IEEE802.3ab, IEEE802.3x |
| Switching capacity | 56Gbps |
| Forwarding performance | 41.66Mpps |
| Packet Buffer | 4Mbit |
| MAC | 8K |
| Dimensions (W×D×H) | 440*208*44mm |
| Weight | 3.6<kg |
| Power supply | AC: 100-240V, 50/60Hz |
| Mean Time Between Failure (MTBF) | >50000 hours |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%～90% (noncondensing) |
| Storage humidity | 5%～90% (noncondensing) |
| Indicatorlight | PWR: Death: switch does not power on Permanent: the switch is powered on |
| LINK/ACT: Death: not connected to the network equipment Green light: connected to 1000Mbps devices Blinking:connected devices are data transmission |
|
| System: Blinking: the system works Out: the system is starting or has nopower |
Software Specification
| Ethernet | support Frame format:Ethernet II |
| support Gigabit SFP 100 Gigabit compatible | |
| support flow control | |
| support Line order（MDIX/MDI) | |
| support link aggregation | |
| support Jumbo Frame length 9K | |
| support Port rate adjustment auto 10Mfull、half 100Mfull、half 1000Mfull |
|
| support Port information statistics | |
| support Port Description | |
| IEEE802.1d STP | support IEEE802.1d STP |
| IEEE802.1w RSTP | support IEEE802.1w RSTP |
| MSTP | support standard 802.1s MSTP |
| support64 MSTP instance | |
| STP Optional Features | support PORT FAST |
| support BPDU FILTER | |
| support BPDU GUARD | |
| support hello-time | |
| support Max Age | |
| support Forward Delay | |
| support Max hops | |
| support TC ignore | |
| support TC GUARD | |
| mstp Port Optional Features | support PORT FAST |
| support BPDU FILTER | |
| support BPDU GUARD | |
| support TC GUARD | |
| support TC filter | |
| support Auto Edge | |
| support TC PROTECTION | |
| support Compatibility mode | |
| support ROOT GUARD | |
| support point to point | |
| AP | support Flow-Balance Method dst-ip Destination IP address dst-mac Destination MAC address src-dst-ip Source and destination IP address src-dst-mac Source and destination MAC address src-ip Source IP address src-mac Source MAC address |
| support Maximum number of Aps | |
| support AP member port that is included in each AP. | |
| storm control | support broadcast storm control |
| support multicast storm control | |
| support unicast storm control | |
| support Control granularity (percentage and kbps are values for 64-byte datagram) 64kbps | |
| mirroring | support Many-to-one mirror |
| support Stream-based mirroring | |
| support Number of mirror groups4 SESSION | |
| VLAN | support Whether to allow VLAN 1 to be deleted on the trunk port |
| support Port based VLAN | |
| support GVRP | |
| support The number of VLANs that can support be created 4094 | |
| support mac-vlan | |
| support subnet-vlan | |
| support protocol vlan | |
| supportvlan maps | |
| support Allow specified VLAN ID range 1-4094 | |
|
MAC address |
support global MAC address qualities 8K |
| support static MAC address qualities 1024 | |
| support filtering MAC address qualities 1024 | |
| support Check and delete address table | |
| support Static address and dynamic learning address | |
| support filtering address | |
| LLDP | support LLDP |
| ONVIF | support ONVIF Detect |
| support ONVIF Server | |
| IGMP Snooping | support IGMP SNOOPING Groups qualities |
| support IGMP V1,V2 snooping | |
| support source IP check | |
| support Multicast policy and filtering | |
| support IGMP Fast Leave | |
| Port limit | support Egress speed limit granularity |
| support Ingress speed limit | |
| support Egress speed limit | |
| ARP | support Anti-ARP gateway spoofing |
| support filtering IP Port | |
| support Free ARP protection | |
| support Source MAC check | |
| support ARP detection | |
| supportip and mac Static binding | |
| supportarp trust Port | |
| Network Tool | support Ping |
| supportTraceroute | |
| ACE capacities | support The input direction is associated with the physical port |
| ACL | support IP standard ACL |
| support IP extended ACL | |
| support MAC extended ACL | |
| support professional ACL | |
| support global ACL | |
| support time-range ACL | |
| QoS | support QOS hardware queues qualities |
| support Determine the exit queue according to 802.1p, DSCP, port | |
| support Stream-based 802.1p re-marking | |
| support Stream-based queue maps | |
| support SP | |
| support WRR | |
| support RR | |
| support WFQ | |
| Port Security | support Mac filtering time support Whitelist data support clear mac address table support Mac address binding support Max mac qualities settings support Blacklist data support Violation mode |
| Port isolate | |
| LOOPBACK | |
| DAI | support software DAI entry qualities |
| SNMP | Supporting version(SNMPV1,V2c,V3) |
| Web management | support Web management |
| support HTTP V1.1 | |
| support HTTPS | |
| RMON | support RMON（1,2,3,9） |
| system upgrade | support System upgrade or page upgrade via tftp |
| save Configuration | support save Configuration |
| Configuration management | support Import, export, backup configuration, restore factory configuration |
| Syslog/Debug | support Syslog/Debug |
| Security function | |
| Basic characteristics | support login authentication(password, none) |
| Password security | support Static password encryption transmission, storage |
| support Strong password and password minimum length check | |
| Radius | support Radius |
| support Specify multiple groups of servers ip | |
| Tacacs+ | support TACACS+ |
| support Specify multiple groups of servers ip | |
| ssh | support SSHv2.0 |
| Anti-dos attack | support Interrupting Land attack packets and illegal TCP packets |
| dot1x | support 802.1X |
| support port base | |
| support mac base | |
| support MAB | |
| support Multiple account switching | |
| Defense gateway ARP spoofing | support Defense gateway ARP spoofing |
| IP SOURCE GUARD | support IP SOURCE GUARD |
| CPP | support hardware CPP |
| ARP Check | support IP+MAC data binding using DHCP SNOOPING |
| support Leverage 1X IP+MAC data binding | |
| support leverage IP+MAC data binding of IP SOURCE GUARD | |
| support Trusted ARP | |
| Web management | support HTTP Access |
| DHCP Relay | support Allow configuration of the number of servers |
| DHCP snooping | support Option82 |
| Supportrust Port Configuration | |
| SupportIP、MAC binding table(ip source guard) | |
| SupportBind to logical ports (including physical interfaces) | |
| SupportSoftware binding database capacity | |
| Supportbind to VLAN | |
| DHCP server | Support binding table Configuration |
| Support Address pool configuration | |
| Telnet | Support Telnet |
| Support Maximum number of connections | |
| TFTP | Support TFTP Client |
| FTP | Support FTP Server |
| Support FTP Client | |
| ERPS | Support Delete ERPS Loop |
| SupportErps Loop Configuration | |
| SupportErps time Configuration | |
| static and dynamic lacp link aggregation | SupportLacp Configuration |
| Support Load-Balance Method dst-ip Destination IP address dst-mac Destination MAC address src-dst-ip Source and destination IP address src-dst-mac Source and destination MAC address src-ip Source IP address src-mac Source MAC address |
|
| Support link aggregation groups qualities | |
| Support max link aggregation qualities of each link aggregation group | |
| Support link aggregation port configuration |
