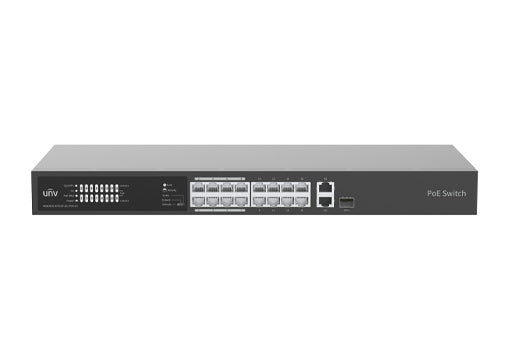

Uniview Ethernet PoE Switches - NSW2020-16T1GT1GC-POE-IN
Uniview Ethernet PoE Switches - NSW2020-16T1GT1GC-POE-IN
Increase network connectivity and efficiency with the Uniview Ethernet PoE Switches - NSW2020-16T1GT1GC-POE-IN. With Power over Ethernet capabilities, this switch can power connected devices, reducing clutter and simplifying installation. Enjoy fast speeds and reliable performance with this professional-grade switch.
Features
-
Default (Normal Mode): Ensures smooth, everyday operations with reliable network performance.
-
VLAN (Secure Mode): Increases security by limiting communication between downlink and uplink ports, providing an isolated and protected network environment.
-
EXTEND (Surveillance Mode): Perfect for long-range installations, allowing up to 250m transmission distance, making it ideal for surveillance systems.
Additional Features:
- Port Traffic Control: Efficiently manage network traffic for optimized performance.
- Buffer Optimization: Reduces latency and boosts data handling for smoother operations.
- All-Metal Housing: Designed for durability, safety, and long-term reliability in any environment.
Specifications
Model | NSW2020-6T-POE-IN | NSW2020-10T-POE-IN | NSW2020-16T1GT1GC-POE-IN | NSW2020-24T1GT1GC-POE-IN |
Ports | 6×100Mbps network ports (RJ45), including 4 PoE ports | 10×100Mbps network ports (RJ45), including 8 PoE ports | 16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports | 24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports |
Standards | IEEE802.3,IEEE802.3u,IEEE802.3az, IEEE802.3x,IEEE802.3af,IEEE802.3at | IEEE802.3,IEEE802.3u,IEEE802.3z, IEEE802.3ab, IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az | ||
Switching capacity | 1.2Gbps | 2Gbps | 7.2Gbps | 8.8Gbps |
Forwarding performance | 0.90Mpps | 1.49Mpps | 5.36Mpps | 6.55Mpps |
Packet Buffer | 448Kbit | 448kbit | 4M bit | 4Mbit |
MAC | 1K | 1K | 16K | 16K |
Dimensions (W×D×H) | 108*100*25.5mm | 171*101*25.5mm | 440*189.8*44mm | 440*244.8*44mm |
Weight | 0.19KG | 0.29KG | 2.12KG | 2.93KG |
Power supply | DC:48/51V | AC: 100-240V, 50/60Hz | ||
PoE | 802.3at/af (4/5+,7/8-) | |||
Max. PoE Power | Max capacity: 60W Max capacity for single port: 30W |
Max capacity:88W Max capacity for single port: 30W |
Max capacity: 225W Max capacity for single port: 30W |
Max capacity: 370W Max capacity for single port: 30W |
Prior Ports | 1~2 | 1~2 | 1~8 | 1~8 |
Cooling Fans | 0 | 0 | 1 | 1 |
Operating temperature | 0°C-40°C (32°F-104°F) | |||
Operating humidity | 10%~90% (noncondensing) | |||
Storage humidity | 5%~90% (noncondensing) | |||
Indicator | POWER: Steady on: AC input is normal Off: No AC input |
|||
No PoE Indicator | PoE: Off: No PoE power supply Steady on: PoE power supply is normal |
|||
PoE-MAX: off :The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification |
||||
LINK/ACT: Off: No link Steady on: Linked Flashing: Transmitting data |
||||
Working Mode | Default(Normal mode) : All ports can communicate with each other. EXTEND(Surveillance mode): Transmission distance up to 250 meters. |
Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time. Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
