TriStar Security Products

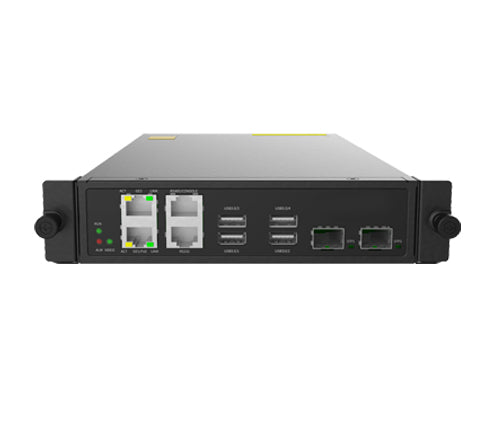

Uniview DC5601 1-CH HD Video Decoder
Uniview DC5601 1-CH HD Video Decoder
Regular price
$2,119.00 USD
Regular price
Sale price
$2,119.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This Uniview DC5601 1-CH HD Video Decoder allows for high-definition video decoding, providing a clear and detailed display. With its advanced technology and reliable performance, it is the perfect solution for your video decoding needs.
Features:
- Embedded Linux OS ensures 24/7 stable operation and prevents hackers and viruses.
- Dual HDMI simultaneous video output, maximum resolution of HDMI 1 is 8K.
- Supports decoding 1-ch 8K@60, 2-ch 8K@30, 8-ch 12MP@20, 8-ch 4K@30, 32-ch 1080P@30, and 64-ch 720P@30 videos in parallel.
- Supports decoding video in H.265, H.264, MPEG4, and MJPEG formats. l
- Supports decoding video in 8K, 12MP, 4K, 1080P, 720P, and D1 resolutions, compatible with IPC streams from mainstream manufacturers in the industry.
- Up to 8K (7680*4320) @60Hz output resolution, compatible with mainstream display devices in the industry.
- Supports decoding audio in G711.A and G711.U formats. l
- Supports up to 64 split screens for a single video output. l
- Allows users to configure and manage the device on a central server, supports GB/T28181 and standard ONVIF.
- Supports synchronizing time with server by schedule. l Supports high/low-temperature alarm.
| Model | DC5601 |
| Decoding | |
| Decoding resolution | Up to 8K |
| Decoding capability | 1-ch 8K@60fps、2-ch 8K@30fps、8-ch 12MP@20fps、8-ch 3840*2160@30fps、32-ch 1080P@30fps、64-ch 720P@30fps |
| Split screen | Up to 64 |
| Output | |
| Video format | H.265、H.264、MPEG4、MJPEG |
| HDMI output | 7680*4320@60Hz、7680*4320@30Hz、3840*2160@60Hz、3840*2160@30Hz、1920*1200@60Hz、1920*1080@60Hz、1920*1080@50Hz、1660*1200@60Hz、1440*900@60Hz、1366*768@60Hz、1280*1024@60Hz、1280*720@60Hz、126480*720@50Hz、1024*768@60Hz |
| VGA output | 1920*1200@60Hz、1920*1080@60Hz、1920*1080@50Hz、1660*1200@60Hz、1440*900@60Hz、1366*768@60Hz、1280*1024@60Hz、1280*720@60Hz、1280*720@50Hz、1024*768@60Hz |
| SDI output | 1920*1080@60Hz、1920*1080@50Hz、1280*720@60Hz、1280*720@50Hz |
| Interface | |
| Video output | 2*HDMI video output interface, 1*VGA, SDI video output interface |
| Audio input | 1*audio input interface (reserved) |
| Audio output | 1*audio output interface (reserved) |
| Alarm input | 4*Phoenix terminal (reserved) |
| Alarm output | 3*Phoenix terminal (reserved) |
| Serial port | 2*RS485 (1 RJ45 RS232 Console and RS485, 1 reserved Phoenix terminal), 1*RS232 (RJ45) |
| Ethernet | 2*GE Ethernet electrical port (RJ45 connector, half-duplex/full-duplex Ethernet, supports 10M/100M/1000M Base-T adaptive) |
| Fan | CPU fan |
| SFP | 2*Gigabit optical port |
| USB | 4*USB3.0 |
| Other | |
| Dimensions (W*H*D)(mm) | 277*40*191 |
| Operating temperature | -10°C to 60°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Power supply | 12V DC |
| Weight (kg) | <2 |
| Power consumption (W) | <15 |
