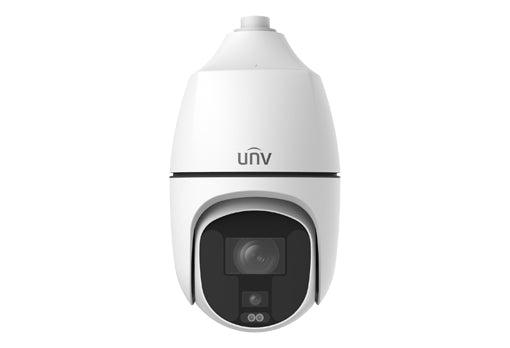

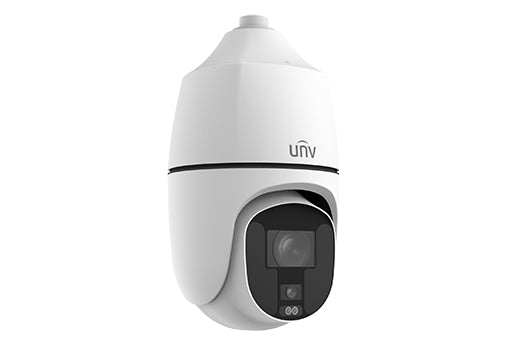

Uniview 8MP+8MP Lighthunter Dual-lens Network PTZ Camera - IPC68188EFW-X25-F40G-VH

Uniview 8MP+8MP Lighthunter Dual-lens Network PTZ Camera - IPC68188EFW-X25-F40G-VH

Regular price $7,799.00 USD
Regular price Sale price $7,799.00 USD
Sale Sold out
Shipping calculated at checkout.

Expertly capture every angle with the Uniview 8MP+8MP Lighthunter Dual-lens PTZ Camera - featuring a powerful 40x optical zoom, 8MP resolution, and advanced light-sensitive technology. Enhance your surveillance capabilities with this professional-grade network camera.

Features:

  • Dual channels with one IP, look at overall situation and consider details at the same time
  • Support dual-lens’ video spliced in one channel, which can obtain a wider monitoring range
  • Ultra 265, H.265, H.264, MJPEG
  • Gyroscope stabilization for stable picture
  • 25X optical zoom of PTZ channel allows for closer viewing of subjects
  • Lighthunter technology ensures ultra-high image quality in low illumination environment
  • IR & warm light illumination to deal with different scenes and achieve full-color illumination
  • AC 24V ± 25% or DC 24V ± 25% power supply

Specifications:

Camera Channel 1 Channel 2
Sensor 1/1.8", 8MP, CMOS 1/1.2", 8MP, CMOS
Min. Illumination Colour:0.0005 lux (F1.0, AGC ON)
0 lux with Warm light
Colour:0.0005 lux (F1.6, AGC ON)
0 lux with IR
Day/Night N/A IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
Lens
Lens type 4mm@F1.0 10~250mm@F1.6,
AF automatic focusing and motorized zoom lens
Digital Zoom N/A 16X
Optical Zoom N/A 25X
Iris Fixed aperture Auto; F1.6(W)~F5.4(T)
Angle of View (H) 92.9° 58.3° ~ 3.0°
Angle of View (V) 49.1° 34.8° ~ 1.7°
Angle of View (O) 114.3° 71.7° ~ 3.6°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4 (Panorama) 62.1 (203.6 ft) 24.8 (81.5 ft) 12.4 (40.7 ft) 6.2 (20.4 ft)
10 (Detail) 222.8 (730.8 ft) 89.1 (292.3 ft) 44.6 (146.2 ft) 22.3 (73.1 ft)
250 (Detail) 4882.5 (16018.7 ft) 1953.0 (6407.5 ft) 976.5 (3203.7 ft) 488.3 (1601.9 ft)
Illuminator
IR Range N/A Up to 250m (820.2 ft)
Warm Light Range Up to 30m (98.4 ft) N/A
Wavelength N/A 850nm (IR)
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 8MP (3840*2160),Max 30fps
Sub Stream: 1080P (1920*1080), Max 30fps
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps ~ 16 Mbps
U-code Support
ROI Up to 8 areas
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask 24 areas, up to 8 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
EIS Support
HLC Support
BLC Support
Defog Digital defog Optical Defog & Digital Defog
Events
Basic Detection Tampering detection, Motion detection, Audio detection
Auto Tracking Support
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZLive
EZView
Web Browser Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above, Safari 11 and above
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range 360°
Pan Speed 0.1°/s ~ 180°/s
Preset speed: 300°/s
Tilt Range -15° ~ 90°
Tilt Speed 0.1°/s ~ 180°/s
Preset speed: 240°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time 15s ~ 1800s
Preset Image Freeze Support
Home Position Support
Interface
Audio I/O 1/1
Alarm I/O 7/2
Serial Port 1 RS485
Built-in Mic N/A
Built-in Speaker N/A
Wi-Fi N/A
Network 1*100M/1000M Base-FX SFP + 1*10M/100M/1000M Base-TX Ethernet
Video Output N/A 1 BNC
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863)
Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power DC24V (±25%), AC24V (±25%)
Power consumption: MAX 63W
Power Interface Wires with cold-pressed terminal
Dimensions (Ø x H) Φ270 x 497mm (Φ10.6” x 19.6”)
Weight 10.08kg (22.2lb)
Working Environment -40℃ ~ +70℃(-40°F ~ +158°F),Humidity: ≤95% RH (non-condensing)
Storage Environment -40℃ ~ +70℃(-40°F ~ +158°F),Humidity: ≤95% RH (non-condensing)
Surge protection 6KV
Reset button Support
