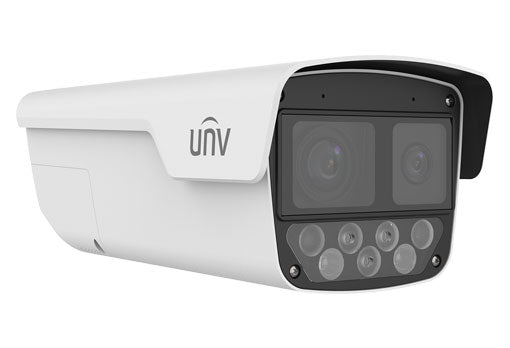

Uniview 8MP+4MP Bi-Channel LightHunter Intelligent Bullet Network Camera - IPC28184EA-ADX5K-F40-I1

Uniview 8MP+4MP Bi-Channel LightHunter Intelligent Bullet Network Camera - IPC28184EA-ADX5K-F40-I1

$3,669.00 USD
$3,669.00 USD
Sale Sold out
Shipping calculated at checkout.

Capture crystal clear 8MP+4MP footage with the Uniview Bi-Channel LightHunter Network Camera. Its intelligent design ensures enhanced performance and efficient surveillance, delivering unmatched security for your home or business. Trust in the advanced technology of Uniview to keep an eye on what matters most.

Features:

  • One IP with two channels, combines the details and full view, making target area stand out without losing overall view
  • 3840*2160@30fps in the main stream of detailed channel with ISP algorithm, provide high definition image
  • Ultra 265, H.265, H.264, MJPEG
  • Built-in dual Mic, efficiently realizes the noise control by noise reduction algorithm
  • Two types of illumination light, offer three illumination modes and support sound-light warning
  • Detailed channel supports electric control and tilt angle adjustment, easier for installation and debugging
  • Switching among three Intelligent functions, suitable for various application scenes
  • Mix-traffic detection, support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection, realize data visualization management, allow users to get target information for further data analysis
  • Smart intrusion prevention, support false alarm filtering, realize accurate detection based on specific target
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • Audio 2 in and 1 out, Alarm 3 in and 2 out

Specifications:

Camera
Sensor Channel 1 : 1/1.8", 4.0 megapixel, progressive scan, CMOS
Channel 2 : 1/1.8", 8.0 megapixel, progressive scan, CMOS
Min. Illumination Channel 1 : Colour:0.0005lux (F1.0, AGC ON)
Channel 2 : Colour:0.005lux (F1.6, AGC ON)
0 lux with IR
Day/Night Channel 2 : IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Angle Adjustment Channel 2 : Tilt: -10° to 10° (electric control , for installation and debugging)
WDR 120dB
S/N >56dB
Lens
Lens type Channel 1 : 4mm
Channel 2 : 10-50mm @F1.6, AF automatic focusing and motorized zoom lens
Optical Zoom Channel 2 : 5X
Iris Channel 1 : Fixed aperture
Channel 2 : DC-iris
Field of View (H) Channel 1 : 94.7°
Channel 2 : 33.8°~8.4°
Field of View (V) Channel 1 : 50.3°
Channel 2 : 18.8°~4.6°
Field of View (D) Channel 1 : 116.5°
Channel 2 : 39.9°~10.0°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
10 292.5 (959.6ft) 117.0 (383.9ft) 58.5 (191.9ft) 29.3 (96.0ft)
50 1237.5 (4060.0ft) 495.0 (1624.0ft) 247.5 (812.0ft) 123.8 (406.0ft)
4 79.1(259.6ft) 31.7(103.9ft) 15.8(51.9ft) 7.9(26.0ft)
Illuminator
Warm Light Distance Up to 30m (98.43ft)
IR Range Up to 50m (164.0ft) IR range
IR Wavelength 750nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265,H.265,H.264,MJPEG
Frame Rate Channel 1 :
Main Stream: 4MP(2688*1520),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Channel 2 :
Main Stream: 8MP(3840*2160),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
U-code Support
ROI Up to 8 ROIs
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas(black/mosaic)
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D NR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC Support
BLC Support
Defog Digital Defog
Intelligent (Channel 2 Only)

Video Metadata
 		 Support collecting the attributes and images of pedestrian, vehicle and non-motor vehicle, offer information for further data analysis
Smart intrusion Prevention Support false alarm filtering, Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Events
Basic Detection Motion detection, Audio detection, Tampering alarm
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U,G.711A
Audio Bitrate 64 Kbps
Two way audio Support
Suppression Support
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4,IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/O 2/1
Alarm I/O 3/2
Serial Port 1 RS485
Built-in Mic Support
Built-in Speaker Support
Network 1 x RJ45 10M/100M/1000M Base-TX Ethernet
Certifications
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power AC24V±25%
Power consumption: Max 31w
Dimensions (Ø x H) Φ326x147x121mm(Φ12.8’’x5.8’’x4.8’’)
Weight 2.11kg
Working Environment -30°C ~60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection Support
Reset button Support
