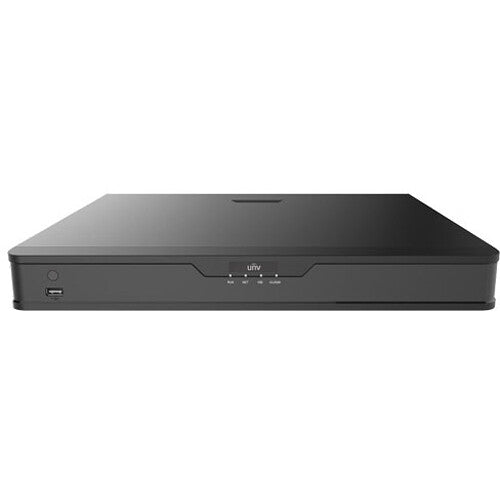

Uniview 8-Channel 8MP NVR - NVR302-08S2-P8
Uniview 8-Channel 8MP NVR - NVR302-08S2-P8
Regular price
$659.00 USD
Regular price
Sale price
$659.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This Uniview 8-Channel 8MP NVR is a high-quality network video recorder that supports up to 8 channels. Featuring 8MP resolution and NVR302-08S2-P8, it offers superior video quality and reliable performance. With easy-to-use interface and advanced features, this NVR is perfect for professional surveillance systems.
Features
- Plug-and-play operation
- Simultaneous HDMI and VGA video outputs
- 80 Mb/s incoming bandwidth
- 64 Mb/s outgoing bandwidth
- 1000M RJ45 Ethernet port
- Two-way audio
- 4 x alarm inputs and 1 x alarm output
- 1 x USB 2.0 and 1 x USB 3.0 port
- 8-channel synchronous playback
- ANR technology enhances storage reliability when the network is disconnected
- 3/4/5/7/9 corridor mode screen
- Can be upgraded via cloud
Specifications
| Number of Channels |
8 (Video)
|
| Playback Resolution |
HDMI:
3840 x 2160 (8 MP) at 60 Hz VGA: 1920 x 1080 (1080p) at 60 Hz |
| Recording Resolution |
1080p, 720p, 960p, 2CIF, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP
|
| Throughput |
80 Mb/s (Incoming)
64 Mb/s (Outgoing) |
| A/V I/O |
1x HDMI
1x VGA |
| Communication I/O |
1x RJ45 Gigabit Ethernet
8x RJ45 10/100 Mb/s Ethernet 1x USB-A 2.0 1x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Wi-Fi |
Yes
|
| Bluetooth |
Yes
|
| Installed Drive |
No
|
| PoE Power Budget |
130 W
|
General
| Number of Channels |
8 (Video)
|
| Playback Resolution |
HDMI:
3840 x 2160 (8 MP) at 60 Hz VGA: 1920 x 1080 (1080p) at 60 Hz |
| Recording Resolution |
1080p, 720p, 960p, 2CIF, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP
|
| Throughput |
80 Mb/s (Incoming)
64 Mb/s (Outgoing) |
| IP Camera Support |
8
|
| Decoding Resolution |
2 Channels:
4K at 30 fps 4 Channels: 4 MP at 30 fps 5 Channels: 3 MP at 30 fps 8 Channels: 1080p at 30 fps |
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
1x HDMI
1x VGA |
| Communication I/O |
1x RJ45 Gigabit Ethernet
8x RJ45 10/100 Mb/s Ethernet 1x USB-A 2.0 1x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Audio I/O |
1x Input
1x Output |
| System Connection |
2x SATA
|
| Wi-Fi |
Yes
|
| Bluetooth |
Yes
|
| Maximum User Access |
128
|
| Network Protocols |
DHCP, NTP, P2P, PPPoE, UPnP
|
Compatibility
| Supported Video Codecs |
H.264, H.265
|
| Supported IEEE Standards |
802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)
|
Computing
| Optical Drive |
No
|
System
| Installed Drive |
No
|
| Max Capacity Supported |
20 TB (Total)
10 TB (Each Drive) |
| Number of Bays |
2x Internal
|
Notifications
| Alarm I/O |
4x Input
1x Output |
System Functions
| Fisheye Dewarping |
No
|
Electrical
| Power Consumption |
10 W (Without HDD)
|
| Power Supply Type |
External
|
| PoE Power Budget |
130 W
|
| PoE per Port |
30 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Built-In Display |
No
|
| Operating Conditions |
14 to 131°F / -10 to 55°C up to 90% Humidity
|
| LED Indicators |
Yes
|
| Dimensions (W x D x H) |
15.0 x 12.4 x 2.1" / 380.0 x 315.0 x 53.0 mm
|
| Weight |
5.7 lb / 2.6 kg (Without HDD)
|
