TriStar Security Products

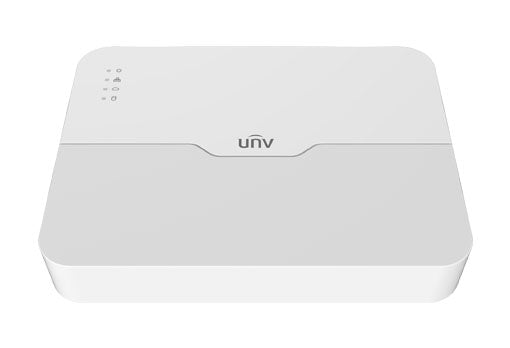

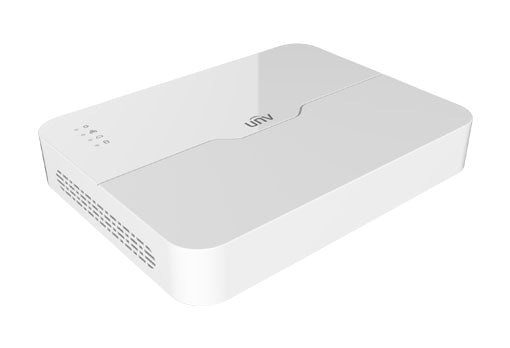

Uniview 8 Channel 1 HDD NVR - NVR301-08LX-P8
Uniview 8 Channel 1 HDD NVR - NVR301-08LX-P8
Regular price
$459.00 USD
Regular price
Sale price
$459.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Uniview's NVR301-08LX-P8 is a professional 8-channel network video recorder that supports up to 8 IP cameras and 1 hard drive. With its advanced features and reliable performance, this NVR is the ideal solution for businesses in need of top-notch surveillance.
Features
- Support Ultra 265/H.265/H.264 video formats
- 4/8/16‑channel input
- Plug & Play with 4/8 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Support 1‑ch HDMI, 1‑ch VGA
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- Support cloud upgrade
Specifications
| Decoding | Description |
| DecodingFormat | Ultra 265, H.265, H.264 |
| DecodingCapability | NVR301‑04LX‑P4:2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30 NVR301‑08LX‑P8:2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080P@30 NVR301‑16LX‑P8:2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080P@30, 16 x 720P@30 |
| AudioCompression | G.711A, G.711U |
| Network | Description |
| IncomingBandwidth | 80Mbps |
| OutgoingBandwidth | 64Mbps |
| RemoteUsers | 128 |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP |
| Browser(Plugin) | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
| Video/AudioInput | Description |
| IPVideoInput | NVR301‑04LX‑P4:4‑ch NVR301‑08LX‑P8:8‑ch NVR301‑16LX‑P8:16‑ch |
| RCAAudioInput | 1‑ch |
| Video/AudioOutput | Description |
| HDMIOutput | HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGAOutput | VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCAAudioOutput | 1‑ch |
| LiveviewDisplay | NVR301‑04LX‑P4:1/4 NVR301‑08LX‑P8:1/4/6/8/9 NVR301‑16LX‑P8:1/4/6/8/9/16 |
| CorridorModeScreen | NVR301‑04LX‑P4:3/4 NVR301‑08LX‑P8:3/4/5/7/9 NVR301‑16LX‑P8:3/4/5/7/9/10/12/16 |
| Two-wayAudio | Description |
| Two-wayAudio | 1‑ch, RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/EventSnapshot | 4‑ch snapshot, up to D1 resolution |
| Recording | Description |
| RecordingResolution | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| SynchronousPlaybackinLocal | NVR301‑04LX‑P4:4‑ch NVR301‑08LX‑P8:8‑ch NVR301‑16LX‑P8:16‑ch |
| Smart | Description |
| VCADetectionbyIPC | Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);People Counting(People Flow Counting, Crowd Density Monitoring) |
| VCASearch | Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report |
| SmartbyIPC | NVR301‑04LX‑P4:Total 4‑ch(Face Detection, SIP, UMD) NVR301‑08LX‑P8/NVR301‑16LX‑P8:Total 8‑ch(Face Detection, SIP, UMD) |
| Alarm | Description |
| GeneralAlarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
| AlertAlarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
| GUILanguage | Description |
| GUILanguage | NVR301‑04LX‑P4/NVR301‑08LX‑P8:38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian NVR301‑16LX‑P8:/ |
| HardDisk | Description |
| SATA | 1 SATA Interface |
| Capacity | Up to 10TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size) |
| ExternalInterface | Description |
| NetworkInterface | 1 RJ45 10M/100M self‑adaptive Ethernet Interface |
| USB | Rear panel: 1 x USB3.0, 1 x USB2.0 |
| RS485 | N/A |
| RS232 | N/A |
| AlarmIn | N/A |
| AlarmOut | N/A |
| PowerSupply | NVR301‑04LX‑P4:DC 48V/1.35A NVR301‑08LX‑P8/NVR301‑16LX‑P8:DC 52V/1.8A |
| PoE | Description |
| Interface | NVR301‑04LX‑P4:4 RJ45 10M/100M self‑adaptive Ethernet Interface NVR301‑08LX‑P8/NVR301‑16LX‑P8:8 RJ45 10M/100M self‑adaptive Ethernet Interface |
| MaxPower | NVR301‑04LX‑P4:Max 30W for single port, Max 54W in total NVR301‑08LX‑P8/NVR301‑16LX‑P8:Max 30W for single port, Max 75W in total |
| SupportedStandard | IEEE 802.3at, IEEE 802.3af |
| WorkingEnvironment | Description |
| WorkingTemperature | ‑10 °C ~ 55 °C (14 °F ~ 131 °F) |
| WorkingHumidity | ≤ 90% RH (non‑condensing) |
| PowerConsumption(withoutHDD) | ≤ 9W |
| Dimensions | Description |
| Weight(withoutHDD) | NVR301‑04LX‑P4:≤ 0.6Kg (1.32lb) NVR301‑08LX‑P8/NVR301‑16LX‑P8:≤ 0.8Kg (1.76lb) |
| Dimensions | NVR301‑04LX‑P4:205mm × 205mm × 47mm (8.1"×8.1"×1.8") NVR301‑08LX‑P8/NVR301‑16LX‑P8:270mm × 205mm × 47mm (10.6"×8.1"×1.9") |
| Certification | Description |
| Certification | CE;FCC;UL;RoHS;WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
