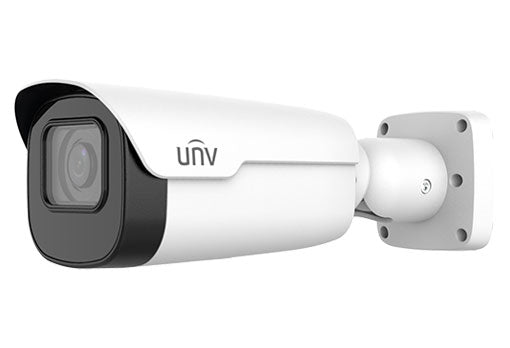

Uniview 5MP LightHunter Intelligent Bullet Network Camera - IPC2A25SA-DZK
Uniview 5MP LightHunter Intelligent Bullet Network Camera - IPC2A25SA-DZK
Regular price
$919.00 USD
Regular price
Sale price
$919.00 USD
Unit price
/
per
Expertly crafted for the highest level of surveillance, the Uniview 5MP LightHunter Intelligent Bullet Network Camera - IPC2A25SA-DZK offers unmatched image quality and advanced intelligence features. With its LightHunter technology, enjoy clear and detailed footage even in low-light conditions. Keep your property secure with this top-of-the-line network camera.
Features
- 1/2.7’’, Powered by lighthunter
- Smart IR, up to 50m (164 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Ultra 265, H.265, H.264, MJPEG
- Five streams
- 2592*1944@20fps in the main stream
- ROI (Region of Interest)
- DC12V or PoE power supply
- Wide voltage range of ±25% in DC
- Micro SD, up to 256 GB
- Alarm 1 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
- IK10 vandal resistant
Specifications
Camera | |||||
Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||
Lens | 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens | ||||
Iris | Auto aperture | ||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.7 | 70.9(232.5ft) | 28.4(93.0ft) | 14.2(46.5ft) | 7.1(23.3ft) | |
13.5 | 247.5(812.0ft) | 99.0(324.8ft) | 49.5(162.4ft) | 24.8(81.2ft) | |
Field of View (H) | 26.8°~93.1° | ||||
Field of View (V) | 20.7°~66.0° | ||||
Field of View (D) | 31.6°~121.0° | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
Min. Illumination | Colour:0.002ux (F1.2, AGC ON) 0 lux with IR |
||||
WDR | 120dB | ||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
S/N | >56dB | ||||
IR Range | Up to 50m (164 ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Defog | Digital Defog | ||||
Video | |||||
Video Compression | Ultra 265,H.265,H.264,MJPEG | ||||
Frame Rate | Main Stream: 5MP(2592*1944),Max 20fps; 4MP(2560*1440),Max 30fps; 3MP(2304*1296),Max 30fps; 2MP(1920*1080),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Forth Stream: D1 (720*576), Max 30fps; Fifth Stream: D1 (720*576), Max 30fps |
||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
ROI | Supported | ||||
Video stream | Five streams | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 8 areas(8 blacks/4 mosaics+4 blacks) | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
HLC | Support | ||||
BLC | Support | ||||
Smart | |||||
Smart intrusion Prevention | Support false alarm filtering, Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection ; Motion detection ; |
||||
Exception Detection And Statistics | Object Removed, Object Left Behind, Defocus, Scene Change | ||||
Statistical Analysis | People counting, support tripwire people counting and area people counting | ||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio | |||||
Audio Compression | G.711U,G.711A | ||||
Two way audio | Supported | ||||
Sampling Rate | 8KHZ | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
Client | EZStation Ezview EZLive |
||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
Interface | |||||
Audio I/O | Audio cable | ||||
1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
1 output: impedance 600Ω; amplitude 2V [p-p] | |||||
Alarm I/O | 1/1 | ||||
Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||||
Certifications | |||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
||||
General | |||||
Power |
DC12V±25%, PoE(IEEE802.3af) | ||||
Power consumption: Max 10W | |||||
Support overcurrent protection and input short circuit protection | |||||
Dimensions (Ø x H) | Φ274.4x98.1x89.6mm(Φ10.8’’x3.9’’x3.5’’) | ||||
Net Weight | 1.12kg(2.46lb) | ||||
Material | Metal | ||||
Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
Surge protection | 6KV |
