TriStar Security Products

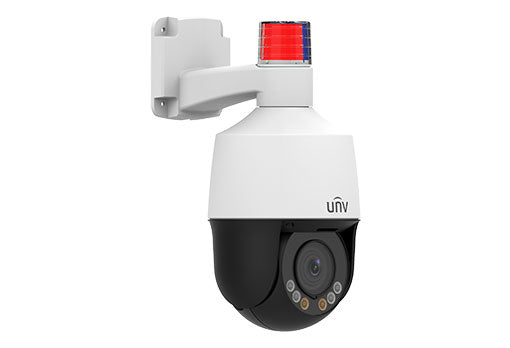

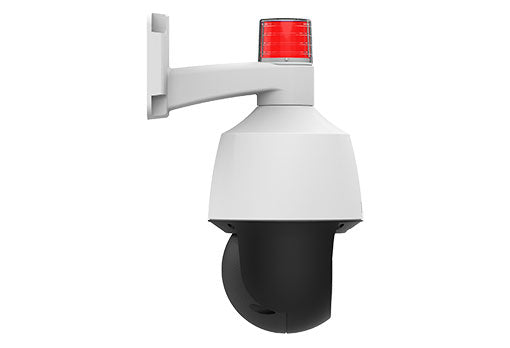

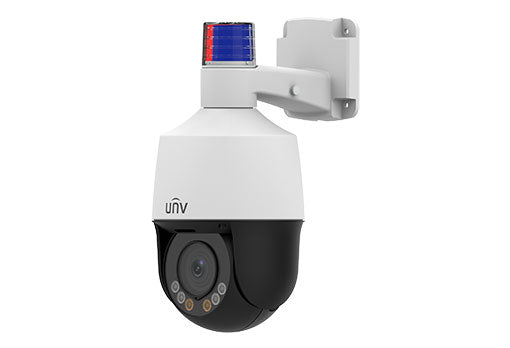

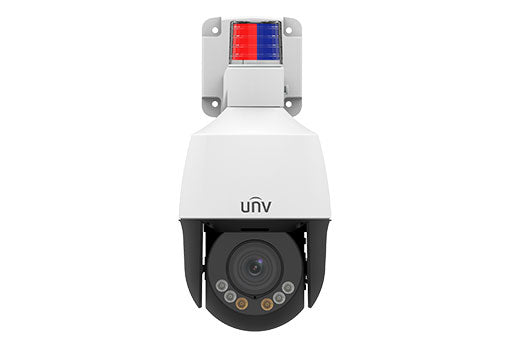

Uniview 5MP LightHunter Active Deterrence Mini PTZ Camera - IPC675LFW-AX4DUPKC-VG

Uniview 5MP LightHunter Active Deterrence Mini PTZ Camera - IPC675LFW-AX4DUPKC-VG

Regular price $659.00 USD
Regular price Sale price $659.00 USD
Sale Sold out
Shipping calculated at checkout.

The Uniview 5MP LightHunter Active Deterrence Mini PTZ Camera is equipped with advanced technology for superior surveillance. With 5MP resolution and LightHunter technology, it captures clear and detailed footage even in low-light conditions. Its active deterrence capabilities provide an added layer of security.

Features

• High quality image with 5MP, 1/2.7"CMOS sensor
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in Mic & Speaker
• Smart IR, Up to 50 m (164 ft) IR distance and 10m (33 ft) warm light distance
• Micro SD, up to 256GB
• IP66 protection
• DC12V or PoE (IEEE 802.3af) power supply


Specifications

Camera
Sensor 1/2.7" progressive scan, 5.0 megapixel, CMOS
Min. Illumination Colour:0.002 lux (F1.2,AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s
WDR 120dB
S/N >52dB
Lens
Lens type 2.8~12mm, AF automatic focusing and motorized zoom lens
Optical Zoom 4X
Iris Fixed; F1.2
Field of View (H) 106.9° ~ 30.6°
Field of View (V) 56.0° ~ 17.7°
Field of View (D) 139.0° ~ 37.6°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8mm 63.0 (206.7ft) 25.2 (82.7ft) 12.6 (41.3ft) 6.3 (20.7ft)
12mm 270.0 (885.8ft) 108.0 (354.3ft) 54.0 (177.2ft) 27.0 (88.6ft)
Illuminator
IR Range Up to 50m (164ft)
Warm Light Range Up to 10m (33ft)
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 5MP (2880*1620), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
ROI Support
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion detection, Audio detection, Tampering Alarm
Auto Tracking Support
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U,G.711A
Two-way Audio Support
Suppression Support
Sampling Rate 16 kHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZLive
EZView
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range 0° ~ 345°
Pan Speed 0.1°/s ~ 50°/s
Preset speed: 50°/s
Tilt Range -10° ~ 110°
Tilt Speed 0.1°/s ~ 40°/s
Preset speed: 40°/s
Number of Presets 256
Preset Patrol 16 patrols, up to 64 presets for each patrol
Patrol Stay Time   120s ~ 1800s
Home Position Support
Interface
Built-in Mic Support
Built-in Speaker Support
Network 1 * RJ45 10M/100M Base-TX Ethernet
Alarm Light Support
Certification
EMC CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-ROHS (2011/65/EU;(EU)2015/863)
Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power DC12V(±25%), PoE(IEEE 802.3af)
Power consumption: MAX 18W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ133mm*269mm (Φ5.2”x 10.6”)
Weight 0.87 kg (1.92lb)
Working Environment -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
Storage Environment -40°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing)
Surge Protection 2KV
Reset Button Support
