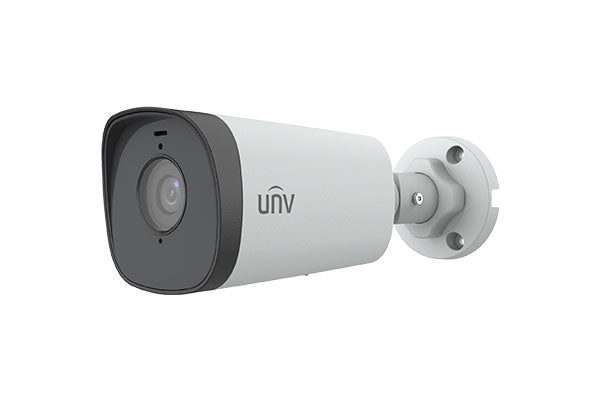

Uniview 5MP HD Intelligent 80m IR Fixed Bullet Network Camera - IPC2315SB-ADF40KM-I0
Uniview 5MP HD Intelligent 80m IR Fixed Bullet Network Camera - IPC2315SB-ADF40KM-I0
This Uniview 5MP HD Intelligent 80m IR Fixed Bullet Network Camera provides clear and detailed surveillance footage in high definition. With intelligent features, it can easily detect motion and detect changes in the environment. Its powerful 80m IR range allows for exceptional visibility in low light conditions, ensuring optimal security at all times.
Features
• High quality image with 5MP, 1/2.7"CMOS sensor
• 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in 2 Mic
• Smart IR, up to 80m (262 ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
Specifications
Camera | |||||||||
Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||||
Minimum Illumination | Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
||||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||
WDR | 120dB | ||||||||
S/N | >56dB | ||||||||
Lens | |||||||||
Lens | 4.0mm@F1.6 | ||||||||
Iris | Fixed | ||||||||
Field of View (H) | 91.2° | ||||||||
Field of View (V) | 47.9° | ||||||||
Field of View (D) | 95.9° | ||||||||
DORI | |||||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |||||
Illuminator | |||||||||
IR Range | Up to 80m (262 ft) IR range | ||||||||
Wavelength | 850nm | ||||||||
IR On/Off Control | Auto/Manual | ||||||||
Video | |||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
Frame Rate | Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
U-code | Support | ||||||||
OSD | Up to 8 OSDs | ||||||||
Privacy Mask | Up to 4 areas | ||||||||
ROI | Up to 8 areas | ||||||||
Video Stream | Triple streams | ||||||||
Image | |||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
Digital Noise Reduction | 2D/3D DNR | ||||||||
Smart IR | Support | ||||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
Dewarping | N/A | ||||||||
HLC | Support | ||||||||
BLC | Support | ||||||||
Defog | Digital Defog | ||||||||
Intelligent | |||||||||
Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||||
Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||||
Events | |||||||||
Basic Detection | Motion detection, Ultra motion detection, tampering alarm, audio detection | ||||||||
General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||||||
Audio | |||||||||
Audio Compression | G.711U, G.711A | ||||||||
Audio Bitrate | 64 Kbps | ||||||||
Two-way Audio | N/A | ||||||||
Suppression | Support | ||||||||
Sampling Rate | 8KHZ | ||||||||
Storage | |||||||||
Edge Storage | Micro SD, up to 256GB | ||||||||
Network Storage | ANR, NAS(NFS) | ||||||||
Network | |||||||||
Protocols | IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||
Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||
Client | EZStation EZView EZLive |
||||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||
Interface | |||||||||
Audio I/O | N/A | ||||||||
Alarm I/O | 1/1 | ||||||||
RS485 | N/A | ||||||||
Built-in Mic | Support | ||||||||
Built-in Speaker | N/A | ||||||||
WIFI | N/A | ||||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||
Video Output | N/A | ||||||||
Certifications | |||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||||
General | |||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
Power consumption: Max 7.0 W | |||||||||
Power Interface | Ø 5.5mm coaxial power plug | ||||||||
Dimensions (L × W × H) | 206 × 74 × 74mm (8.1” × 2.9” × 2.9”) | ||||||||
Weight | 0.51kg (1.12lb) | ||||||||
Material | Metal | ||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Surge Protection | 4KV | ||||||||
Reset Button | Support |
