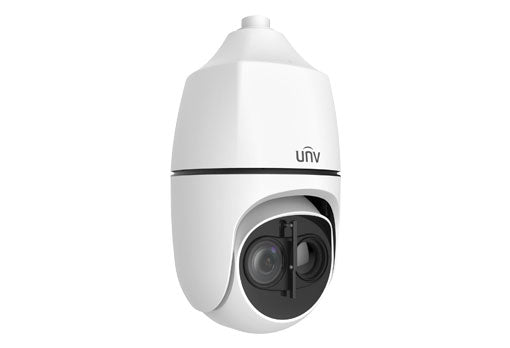

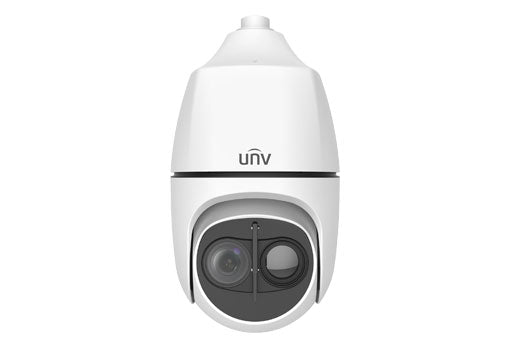

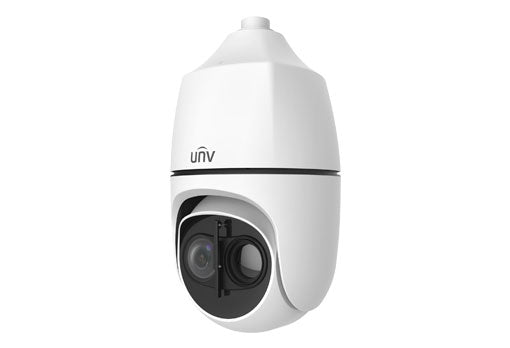

Uniview 4MP Thermal & Optical Dual-spectrum Starlight Intelligent PTZ Dome Camera - TIC6831ER-F50-4X38P
Uniview 4MP Thermal & Optical Dual-spectrum Starlight Intelligent PTZ Dome Camera - TIC6831ER-F50-4X38P
Regular price
$26,329.00 USD
Regular price
Sale price
$26,329.00 USD
Unit price
/
per
Enhance surveillance capabilities with the Uniview 4MP Thermal & Optical Dual-spectrum Starlight Intelligent PTZ Dome Camera. This advanced camera features dual-spectrum imaging, allowing for superior detection in low-light and long-range environments. With intelligent PTZ capabilities, it offers precise and efficient monitoring.
Features:
Optics
- Thermal & Optical dual-spectrum image, dual channels with one IP, adaptable to more various scenes
- Passive infrared thermal imaging, meet the requirement of concealed monitoring and not affected by bad weather condition such as fog, smoke, rain, snow and night etc.
- Starlight illumination
- Smart IR, up to 150m (492ft) IR distance
- Gyroscope stabilization for stable picture
- 2D/3D DNR (Digital Noise Reduction)
Smart
- Smart linkage: thermal channel support fire detection, optical channel can link to the fire position and zoom in, more accurate to judge fire situation
- Perimeter protection based on deep learning algorithm: cross line, enter area, leave area, intrusion, support smart tracking
Compression
- 4 Megapixel optical image
- Ultra265, H.264, MJPEG
- Triple streams
- Customize OSD
Network
- ONVIF Conformance
Structure
- AC/DC24V or PoE++(IEEE 802.3bt) power supply
- Wide voltage range of ±25%
- Support Wiper
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP66
Specifications:
Optical Module | |||||
Image sensor | 1/1.8", progressive scan, 4.0 megapixel, CMOS | ||||
Lens | 5.7 ~ 216.6mm, AF automatic focusing and motorized zoom lens | ||||
Digital Zoom | 16 | ||||
Optical Zoom | 38 | ||||
DORI Distance | Lens(mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
5.7 | 97.5(319.9ft) | 39(128.0ft) | 19.5(64.0ft) | 9.8(32.0ft) | |
216.6 | 3030(9940.9ft) | 1212(3976.4ft) | 606(1988.2ft) | 303(994.1ft) | |
Field of View(H) | 58.5°~ 2.1° | ||||
Field of View(V) | 35.0°~ 1.2° | ||||
Field of View(D) | 72.0°~ 2.5° | ||||
Shutter | Auto/Manual, shutter time: 1~1/100000 s | ||||
Minimum Illumination | Colour: 0.0005 Lux (F1.3, AGC ON) 0 Lux with IR |
||||
Iris | Auto/Manual; F1.3 ~ F4.6 | ||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
Digital noise reduction | 2D/3D DNR | ||||
S/N | >55dB | ||||
IR Range | Up to 150m (492ft) | ||||
Defog | Optical Defog & Digital Defog | ||||
WDR | 120dB | ||||
Thermal Module | |||||
Sensor type | Vanadium Oxide Uncooled Focal Plane Arrays | ||||
Max. Resolution | 384*288 | ||||
Video format | 720P(1280*720), Max 25fps | ||||
Pixel size | 17μm | ||||
Response waveband | 8~14μm | ||||
NETD | ≤50mk | ||||
Lens(focal length) | 50mm | ||||
Field of View (H) | 7.5° | ||||
Field of View (V) | 5.8° | ||||
Field of View (D) | 9.1° | ||||
Focus | Auto/Semiautomatic/Manual | ||||
Palette | Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce | ||||
Detection Distance | Vehicle: 3480m (target size 4mx1.4m); human: 1395m (target size 1.8mx0.5m); | ||||
Recognition Distance | Vehicle: 870m (target size: 4mx1.4m); human: 349m (target size: 1.8mx0.5m); | ||||
Identification Distance | Vehicle: 497m (target size: 4mx1.4m); human: 199m (target size: 1.8mx0.5m); | ||||
Video | |||||
Compression | Ultra265, H.264, MJPEG | ||||
H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
Frame Rate | Main Stream: 4MP (2688×1520): Max.60fps; Sub Stream: 2MP (1920×1080): Max.60fps; Third Stream: D1(720 x 576): Max.60fps; |
||||
HLC | Supported | ||||
BLC | Supported | ||||
OSD | Up to 8 OSDs | ||||
ROI | Up to 8 areas | ||||
Privacy Mask | Up to 24 areas | ||||
Motion Detection | Up to 4 areas | ||||
Smart | |||||
Fire Detection (thermal module) |
Support the detection of fire point in the environment and link the optical camera zoom tracking and alarm | ||||
Behavior Detection (thermal module) |
Support false alarm filtering Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
||||
Exception Detection And Statistics (optical module) |
Object Removed, Object Left Behind, Auto-tracking | ||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio | |||||
Audio Compression | G.711U, G.711A | ||||
Two-way audio | Supported | ||||
Suppression | Supported | ||||
Sampling Rate | 8 KHZ | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
Pan & Tilt | |||||
Pan Range | 360° (endless) | ||||
Pan Speed | 0.1°/s ~ 180°/s | ||||
Preset speed: 300°/s | |||||
Tilt Range | -15° ~ 90° (auto reverse) | ||||
Tilt Speed | 0.1° ~ 180°/s | ||||
Preset speed: 240°/s | |||||
Number of Presets | 1024 | ||||
Patrol | Preset patrol, route patrol, recorded patrol | ||||
Home Position | Supported | ||||
Interface | |||||
Audio I/O | Audio cable | ||||
Input: impedance 1kΩ; amplitude 2V [p-p] | |||||
Output: impedance 600Ω; amplitude 2V [p-p] | |||||
Alarm I/O | 2/1 | ||||
Serial Port | 1 RS485 | ||||
Video Output | N/A | ||||
Network | 1 RJ45 10M / 100M Base-TX Ethernet | ||||
General | |||||
Power | AC 24V, DC 24V ±25%, PoE++ (IEEE 802.3bt) (IEEE802.3bt switch required) | ||||
Power consumption: Max 57W | |||||
Dimensions (Φ × H) | Φ270mm × 496.7mm (Φ10.6" × 19.6") | ||||
Weight | 10.22kg (22.53lb) | ||||
Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
Surge protection | 6KV | ||||
Vandal Resistant | N/A | ||||
Ingress Protection | IP66 |
