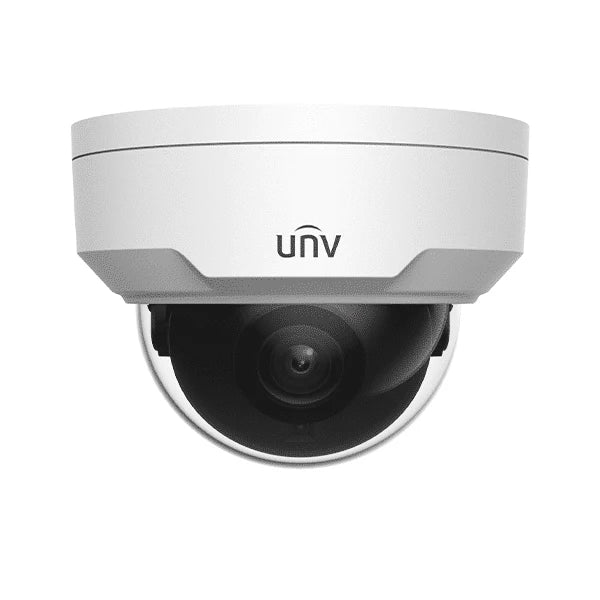

Uniview 4MP Network IR Outdoor Dome Camera - IPC324SR3-DSF28KM-G
Uniview 4MP Network IR Outdoor Dome Camera - IPC324SR3-DSF28KM-G
Regular price
$309.00 USD
Regular price
Sale price
$309.00 USD
Unit price
/
per
Introducing the Uniview 4MP Network IR Outdoor Dome Camera - IPC324SR3-DSF28KM-G. With advanced technology, this camera provides crisp 4MP resolution and powerful IR night vision capabilities. Keep your property safe and secure with this efficient and reliable camera.
Features
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
Compression
- 265
- Triple streams
- ROI (Region of Interest)
- Customized OSD
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide input voltage range of ±25%
- IK10 vandal resistant
- IP66
Specifications
Camera | |
Sensor | 1/3″, 4 megapixel, progressive scan CMOS |
Lens | DVPF28: 2.8 mm@F2.0 |
DVPF36: 3.6 mm@F2.0 | |
DVPF60: 6.0 mm@F2.0 | |
Angle of view(H) | DVPF28: 93.0° |
DVPF36: 72.0° | |
DVPF60: 42.0° | |
Shutter | Auto/Manual, 1/6~1/8000 s |
Min. Illumination | Colour: 0.02 Lux (F2.0, AGC ON) |
0 Lux with IR | |
Day/Night | IR-cut filter with auto switch (ICR) |
S/N | >55 dB |
WDR | 120 dB |
Video | |
Max. Resolution | 2592 × 1520 |
Video Compression | H.265, H.264, MJPEG |
Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps |
3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps | |
9:16 Corridor Mode | Supported |
ROI | Supported |
Video Streaming | Triple |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 4 areas |
Audio | |
Audio Compression | G.711 |
Two-way audio | Supported |
Storage | |
Edge Storage | Micro SD, up to 128 GB |
Network | |
Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, Qos, NTP, FTP, HTTP, SNMP, SIP |
Compatible Integration | ONVIF, API |
Interface | |
Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] |
Output: impedance 600 Ω; amplitude 2 V [p-p] | |
Alarm I/O | 1-Jan |
Network | 10M/100M Base-TX Ethernet |
Approvals | |
UL, FCC, CE | |
General | |
Power | 12 V DC, or PoE (IEEE802.3 af) |
Power consumption: Max 5.5W | |
Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) |
Weight | 0.45 kg (0.99 lb) |
Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
Vandal Resistant | IK10 |
Ingress Protection | IP66 |
