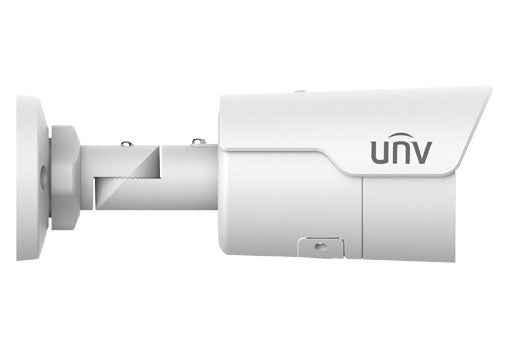

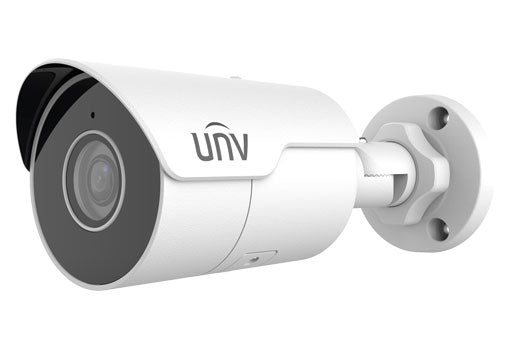

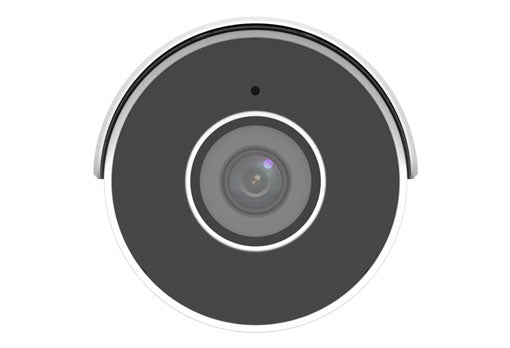

Uniview 4MP Mini IR Fixed Bullet Network Camera - IPC2124SR5-ADF28KM-G
Uniview 4MP Mini IR Fixed Bullet Network Camera - IPC2124SR5-ADF28KM-G
Couldn't load pickup availability
Get clear, high-quality footage with the Uniview 4MP Mini IR Fixed Bullet Network Camera. Equipped with advanced technology, this camera captures sharp images day and night. With its compact design, it's perfect for discreet surveillance in any environment.
Features
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Lighthunter technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 50m (164ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
Specifications
| Camera | |||||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||||||
| Lens | 2.8mm@F1.6 | ||||||||||
| Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||||||
| Angle Of View (H) | 101.1° | ||||||||||
| Angle Of View (V) | 55.3° | ||||||||||
| Angle Of View (O) | 111.1° | ||||||||||
| Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||||
| Minimum Illumination | Support LightHunter: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR | ||||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||||
| S/N | >56dB | ||||||||||
| IR Range | Up to 50m (164ft) IR range | ||||||||||
| Wavelength | 850nm | ||||||||||
| IR On/Off Control | Auto/Manual | ||||||||||
| Defog | Digital Defog | ||||||||||
| WDR | 120dB | ||||||||||
| Video | |||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||||||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||||
| 9:16 Corridor Mode | Supported | ||||||||||
| OSD | Up to 4 OSDs | ||||||||||
| Privacy Mask | Up to 4 areas | ||||||||||
| ROI | Up to 8 areas | ||||||||||
| Motion Detection | Up to 4 areas | ||||||||||
| Image | |||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||||
| Smart IR | Support | ||||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||||
| Dewarping | N/A | ||||||||||
| HLC | Supported | ||||||||||
| BLC | Supported | ||||||||||
| Audio | |||||||||||
| Audio Compression | G.711 | ||||||||||
| Suppression | Supported | ||||||||||
| Sampling Rate | 8KHZ | ||||||||||
| Storage | |||||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||||
| Smart | |||||||||||
| Behavior Detection | Cross line, intrusion(based on human body detection) | ||||||||||
| motion detection, tampering alarm, audio detection | |||||||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||||||||
| Network | |||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | ||||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||||
| Client | EZStation EZView EZLive | ||||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||||
| Interface | |||||||||||
| Network | 10/100M Base-TX Ethernet | ||||||||||
| Built-in Mic | Supported | ||||||||||
| Certifications | |||||||||||
| Certifications | UL: UL60950-1 FCC: FCC Part 15 | ||||||||||
| General | |||||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||||
| Power consumption: Max 6.0W | |||||||||||
| Dimensions(L × W × H) | 190×73×71mm (7.5”×2.9”×2.8”) | ||||||||||
| Net Weight | 0.45kg (0.99lb) | ||||||||||
| Material | Metal | ||||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||||
| Surge Protection | 4KV | ||||||||||
| Ingress Protection | IP67 | ||||||||||
| Reset Button | N/A | ||||||||||
