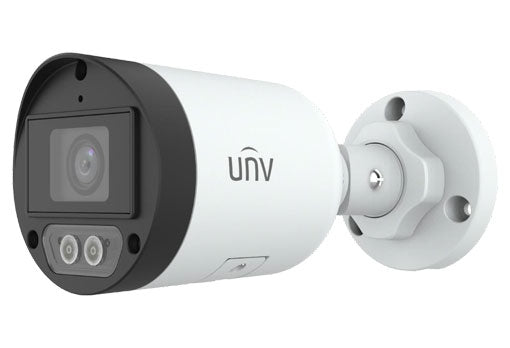

Uniview 4MP HD ColorHunter Mini Fixed Bullet Network Camera - IPC2124LB-AF40K-DL

Uniview 4MP HD ColorHunter Mini Fixed Bullet Network Camera - IPC2124LB-AF40K-DL

$239.00 USD
$239.00 USD
Sale Sold out
Shipping calculated at checkout.

Expertly capture every detail and color with the Uniview 4MP HD ColorHunter Mini Bullet Network Camera. Its advanced technology and 4MP resolution provide unparalleled image clarity, while the fixed lens ensures precise focus. With its compact design and easy installation, it's the perfect choice for any surveillance needs.

Features

• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra H.265,H.265, H.264
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Warm Light, up to 30m (98ft) warm light distance
• 2D/3D DNR (Digital Noise Reduction)
• Support 128GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

Specifications

Camera
Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.005 lux ( F1.6, AGC ON)
0 Lux with light
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
WDR DWDR
S/N >52dB
Lens
Lens type
4.0mm@F1.6
Iris Fixed
Field of View (H)
79.0°
Field of View (V)
42.3°
Field of View (D)
85.1°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)





4.0 90.0(295.3ft) 36.0(118.1ft) 18.0(59.1ft) 9.0(29.5ft)
Illuminator
IR Range Up to 30m (98ft)
Warm Light Range Up to 30m (98ft)
Light On/Off Control Auto/Manual
Video
Video Compression Ultra H.265,H.265, H.264
Frame Rate Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
H.264 code profile Baseline profile, Main profile, High profile
Video Bit Rate 128 Kbps~6144Kbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video stream Dual streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart Illumination Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 128 GB
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, Qos, SMTP, SSL/TLS, SNMP
Compatible Integration ONVIF (Profile S, Profile T, Profile G),API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
Client EZStation
EZLive
EZView
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC12V(±25%) , PoE(IEEE 802.3af)
Power consumption: Max 2.8W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (L x W x H) 162 × 67 × 67mm (6.4” × 2.6” × 2.6”)
Weight 0.24kg(0.53lb)
Material Metal + Plastic
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection 4KV
Reset button N/A
