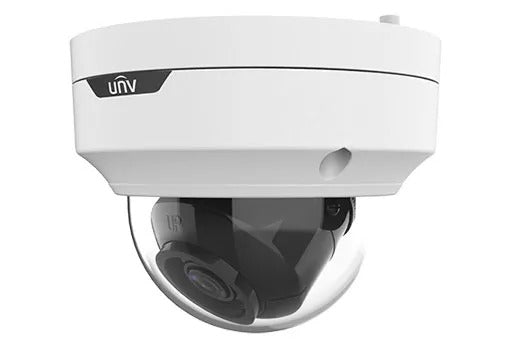

Uniview 4MP Deep Sight Fixed Dome Camera - IPC3534SA-DF40K
Uniview 4MP Deep Sight Fixed Dome Camera - IPC3534SA-DF40K
Regular price
$619.00 USD
Regular price
Sale price
$619.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Uniview 4MP Deep Sight Fixed Dome Camera, model IPC3534SA-DF40K, is a highly advanced security camera for indoor use. With its 4MP resolution, this camera provides high-definition footage and its Deep Sight technology allows for precise facial recognition. Experience unparalleled security with this top-of-the-line fixed dome camera.
Features
- 1/1.8" progressive scan CMOS
- Up to 2688×1520 resolution,30fps;
- 2.8mm/4.0mm optional
- Ultra 265,H.265
- Smart IR, up to 50m IR distance
- 120dB True WDR
- 2D/3D DNR, ROI,ONVIF
- DC12V, Wide voltage range of ±25%
- IP67
- IK10
- PoE(IEEE 802.3af)
Specifications
| Camera | |||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||
| Lens | 4.0mm@F1.6 | ||
| Iris | Fixed | ||
| DORI Distance | Observe (m) | Recognize (m) | |
| 16.8(55.1ft) | 8.4(27.6ft) | ||
| 24.0(78.7ft) | 12.0(39.4ft) | ||
| Angle of View (H) | 94.7° | ||
| Angle of View (V) | 49.6° | ||
| Angle of View (O) | 116.5° | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Adjustment angle | Tilt: 0°~70° | ||
| Min. Illumination | Colour:0.001lux (F1.6, AGC ON) 0 lux with IR |
||
| WDR | 120dB | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| IR Range | Up to 50m (164 ft) IR range | ||
| Wavelength | 850nm | ||
| IR On/Off Control | Auto/Manual | ||
| Defog | Digital Defog | ||
| Video | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
||
| Video Bit Rate | 128 Kbps~16 Mbps | ||
| ROI | Supported | ||
| Video stream | Triple streams | ||
| OSD | Up to 8 OSDs | ||
| Privacy Mask | Up to 8 areas(8 blacks/4 mosaics+4 blacks) | ||
| Image | |||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||
| Digital noise reduction | 2D/3D DNR | ||
| Smart IR | Support | ||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||
| HLC | Support | ||
| BLC | Support | ||
| Smart | |||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||
| Audio | |||
| Audio Compression | G.711U,G.711A | ||
| Two-way Audio | Supported | ||
| Suppression | Supported | ||
| Sampling Rate | 8KHZ | ||
| Storage | |||
| Edge Storage | Micro SD, up to 256 GB | ||
| Network Storage | ANR,NAS(NFS) | ||
| Network | |||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||
| Client | EZStation EZLive Ezview |
||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||
| Interface | |||
| Audio I/O | Audio cable | ||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | |||
| Alarm I/O | 1/1 | ||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||
| Certification | |||
| Certifications | CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15 |
||
| General | |||
|
Power |
DC12V(±25%), PoE(IEEE 802.3af) | ||
| Power consumption: Max 8.3W | |||
| Support overcurrent protection, Input short circuit protection | |||
| Dimensions (Ø x H) | Φ128.1 x 99.9mm(Φ5.04" x 3.93") | ||
| Weight | 0.59kg(1.3lb) | ||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||
| Surge protection | 6KV | ||
| Vandal Resistant | IK10 | ||
| Ingress Protection | IP67 | ||
