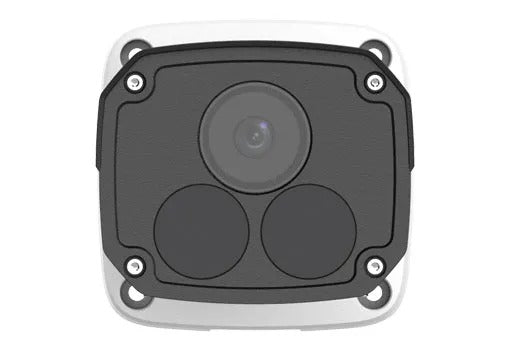

Uniview 4MP Deep Sight Fixed Bullet Camera - IPC2224SA-DF60K

Uniview 4MP Deep Sight Fixed Bullet Camera - IPC2224SA-DF60K

$619.00 USD
$619.00 USD
Sale Sold out
Shipping calculated at checkout.

Expertly designed for superior surveillance, the Uniview 4MP Deep Sight Fixed Bullet Camera - IPC2224SA-DF60K offers unparalleled clarity and precision. With its advanced features, including 4MP resolution and deep learning algorithm, this camera delivers accurate and reliable surveillance results, making it the perfect choice for any security application.

Features

  • 1/1.8" progressive scan CMOS
  • Up to 2688*1520 resolution,30fps
  • 4mm/6mm
  • Ultra 265,H.265
  • Smart IR, up to 50m IR distance
  • 120dB True WDR
  • 2D/3D DNR, ROI,ONVIF
  • DC12V, Wide voltage range of ±25%
  • IP67
  • IK10
  • PoE(IEEE 802.3af)

Specifications

Camera
Sensor 1/1.8", 4.0 megapixel, progressive scan, CMOS
Lens
6mm@F1.6, fixed zoom lens
Iris Fix aperture
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)





6 90.0(295.3ft) 36.0(118.1ft) 18.0(59.1ft) 9.0(29.5ft)
Angle of View (H)
68.1°
Angle of View (V)
41.6°
Angle of View (O)
83.8°
Shutter Auto/Manual, 1 ~ 1/100000s
Min. Illumination Colour:0.001lux (F1.6, AGC ON)
0 lux with IR
WDR 120dB
Day/Night IR-cut filter with auto switch (ICR)
S/N >55dB
IR Range Up to 50m (164 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
Video
Video Compression Ultra 265,H.265,H.264,MJPEG
Frame Rate Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 2MP(1920*1080),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
ROI Supported
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas(8 blacks/4 mosaics+4 blacks)
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC Support
BLC Support
Smart
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U,G.711A
Two way audio Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
Ezview
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/O Audio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Network 1 x RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General

Power
 		 DC12V(±25%), PoE(IEEE802.3af)
Power consumption: Max 8.5W
Support overcurrent protection and input short circuit protection
Dimensions (Ø x H) Φ245.6x85.7x85.4mm(Φ12.1" x 3.4" x 3.4")
Net Weight 0.90kg(1.98lb)
Material Metal
Working Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection 6KV
Vandal Resistant IK10
Ingress Protection IP67
