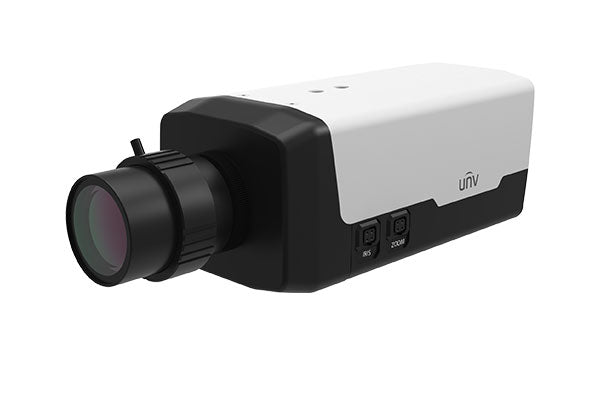

Uniview 4K Ultra-HD LightHunter WDR Network Box Camera - IPC568EB-DGK-I0

Uniview 4K Ultra-HD LightHunter WDR Network Box Camera - IPC568EB-DGK-I0

Regular price $1,519.00 USD
Regular price Sale price $1,519.00 USD
Sale Sold out
Shipping calculated at checkout.

The Uniview 4K Ultra-HD LightHunter WDR Network Box Camera - IPC568EB-DGK-I0 offers crystal-clear 4K resolution and advanced LightHunter technology for enhanced low-light performance. With Wide Dynamic Range (WDR) capabilities, this camera provides optimal image quality in both bright and dark environments. Perfect for professional surveillance needs.

Features:

  • High quality image with 8MP,1/1.8’’ CMOS sensor
  • 3840*2160@30fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Support high-precision motorized lens for accurate zoom & focus
  • DC12V or AC24V or PoE (IEEE 802.3af) power supply
  • Audio 1 in and 1 out, Alarm 2 in and 1 out
  • Support optical interface & network interface serial connection, reduce the cost of wiring

Specifications:

Camera
Sensor 1/1.8", 8.0 megapixel, progressive scan, CMOS
Min. Illumination Colour:0.002lux (F1.2, AGC ON)
B/W: 0.0002Lux(F1.2, AGC ON)
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
ABF Support
Lens
Lens Mount C/CS
Iris DC-Iris/P-Iris, DC 5V (4 Pins)
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 8MP (3840*2160), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC Support
BLC Support
Defog Optical Defog & Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Audio detection, Tampering alarm
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZLive
EZView
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/O 1/1
Alarm I/O 2/1
Zoom/focus Support
Serial Port 1 RS485
Built-in Mic N/A
Built-in Speaker N/A
Network 1*100M/1000M SFP+ 1*RJ45 10M/100M/1000M Base-TX Ethernet
Video Output 1 BNC
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
General
Power DC12V(±25%), AC24V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 8.0W
Power Interface Two-core terminal block
Dimensions (L x W x H) 152 x 71 x 65mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)
Weight 0.40kg (0.88lb)
Working Environment -20°C ~ 60°C (-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Reset button Support
Protection N/A
