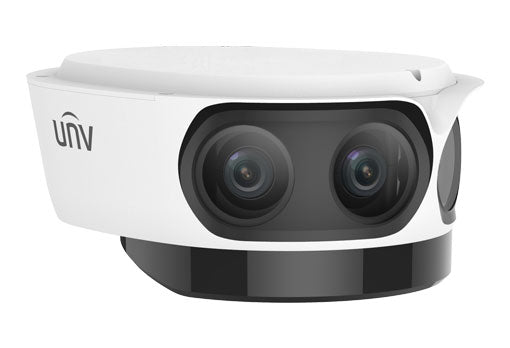

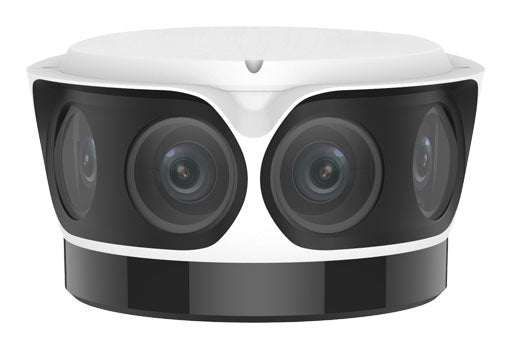

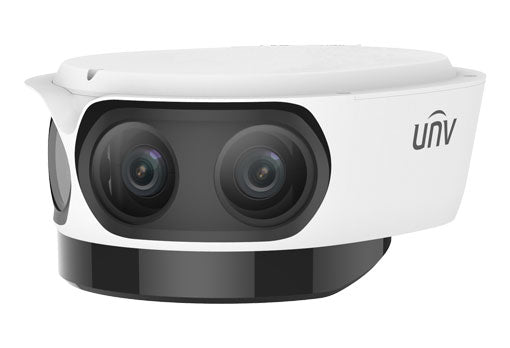

Uniview 4K Starlight OmniView Network Camera - IPC8542ER5-DUG

Uniview 4K Starlight OmniView Network Camera - IPC8542ER5-DUG

$5,959.00 USD
$5,959.00 USD
Sale Sold out
Shipping calculated at checkout.

Get a clear view of your surroundings with the Uniview 4K Starlight OmniView Network Camera. With 4K resolution and Starlight technology, this camera captures high-quality images even in low light conditions. Its OmniView feature allows for a wide viewing angle, providing comprehensive coverage. Enhance your security with this advanced network camera.

Features:

Optics

  • Fifth-generation infrared technology, up to 50m (164ft) IR distance
  • Starlight illumination
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR
  • 2D/3D DNR (Digital Noise Reduction)
  • 120dB true WDR
  • Support a horizontal viewing angle of 180°

Compression

  • Ultra H.265,H.265, H.264, MJPEG
  • Triple streams
  • Customized OSD
  • 4096×1800@30fps supported

Network

  • ONVIF Conformance

Structure

  • Intelligent temperature control technology
  • Wide temperature range: -40°C to 70°C (-40°F to 158°F)
  • Wide voltage range of ±25%
  • More effective heat dissipation system
  • IP6

Specifications:

Camera
Sensor 1/1.8" progressive scan, 2.0 megapixel, CMOS
Lens 4×4.2mm lens
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4.2mm 50.4 (165.4ft) 20.2(66.3ft) 10.1(33.1ft) 5.0(16.4ft)
Field of View (H) 180°
Field of View (V) 80°
Field of View (D) 221.4°
Adjustment angle Pan: -90°~90° Tilt: -45°~60°
Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum Illumination Colour: 0.002lux (F1.8,AGC ON)
0lux with IR
Iris F1.8
Day/Night IR-cut filter with auto switch (ICR)
S/N >55 dB
IR Range UP to 50m (164ft)
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra H.265,H.265, H.264, MJPEG
Frame Rate Main Stream: 4096×1800:Max. 30 fps;
Sub Stream: 1920×832:Max. 30 fps;
Third Stream: 1280×560: Max. 30 fps
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas(8 blacks/8 mosaics)
ROI Up to 8 areas
Smart
Behavior Detection Cross Line detection, Intrusion detection, Motion detection
Exception Detection And Statistics Object Removed, Object Left Behind, Defocus, Scene Change
Recognition Audio detection
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Two-way Audio Supported
Suppression Supported
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O 1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 2/1
Network 1*100M/1000M Base-FX SFP + 2*10M/100M/1000M Base-TX Ethernet
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power AC24V±25%/DC24V support 18V-48V
Power consumption: 45W MAX
Dimensions 259mmx211mmx115mm（(10.2”×8.3”×4.5”)）
Weight 2.4kg(5.3lb)
Working Environment –40°C ~ +70°C (-40°F ~ 158°F), Humidity:10%~95% RH(non-condensing)
Reset Button Supported
