TriStar Security Products

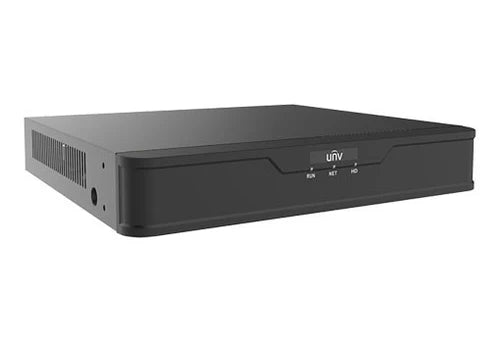

Uniview 4k Network Video Recorder - NVR302-16S2-P16
Uniview 4k Network Video Recorder - NVR302-16S2-P16
Regular price
$869.00 USD
Regular price
Sale price
$869.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Maximize your surveillance capabilities with the Uniview 4k Network Video Recorder - NVR302-16S2-P16. This advanced NVR offers 16 channels and supports up to 4k resolution for crystal clear footage. With reliable recording and easy operation, it's the ideal choice for professional-grade security systems.
Features
-
Support Ultra265/H.265/H.264 video formats
- 8/16-channel input
- Plug & Play with 8/16 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 2 SATA HDDs, up to 10TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Specifications
| Feature | NVR302-09S2 | NVR302-16S2 |
|---|---|---|
| Video/Audio Input | ||
| IP Video Input | 9-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | 1-ch, RCA |
| Network | ||
| Incoming Bandwidth | 160 Mbps | 160 Mbps |
| Outgoing Bandwidth | 64 Mbps | 64 Mbps |
| Remote Users | 128 | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | ||
| HDMI Output | 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 | 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 |
| VGA Output | 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60 | 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60 |
| Audio Output | 1-ch, RCA | 1-ch, RCA |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 9-ch | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
| Decoding | ||
| Decoding Format | Ultra265/H.265/H.264 | Ultra265/H.265/H.264 |
| Live View/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 9 x 1080p@25 | 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30 |
| Hard Disk | ||
| SATA | 2 SATA interfaces | 2 SATA interfaces |
| Capacity | Up to 6TB for each disk | Up to 6TB for each disk |
| External Interface | ||
| Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0 | Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0 |
| General | ||
| Power Supply | 12V DC | 12V DC |
| Power Consumption | ≤ 15 W (without HDD) | ≤ 15 W (without HDD) |
| Working Environment | -10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | -10°C~+55°C (+14°F~131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 380mm × 315mm × 53mm (15.0" × 12.4" × 2.1") | 380mm × 315mm × 53mm (15.0" × 12.4" × 2.1") |
| Weight (without HDD) | ≤ 0.98Kg (2.16lb) | ≤ 0.98Kg (2.16lb) |
