TriStar Security Products

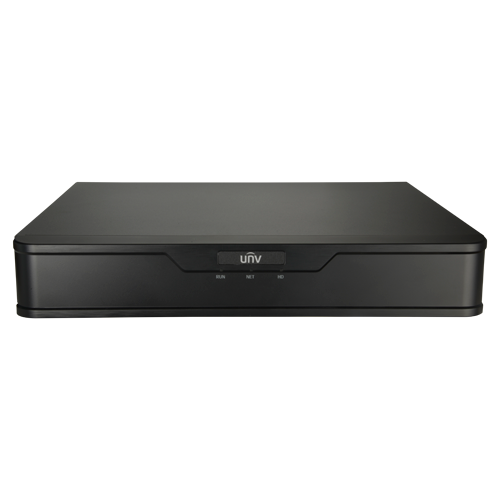

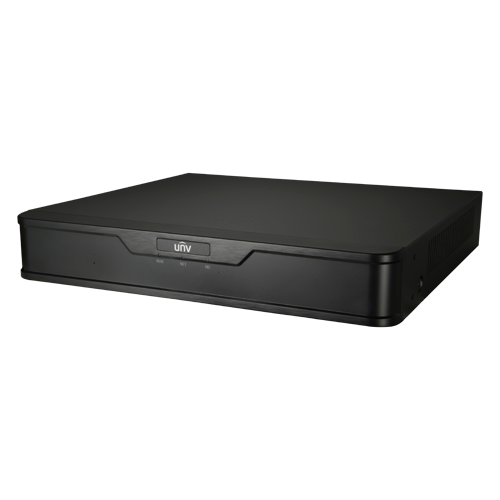

Uniview 4k Network Video Recorder - NVR301-16S3
Uniview 4k Network Video Recorder - NVR301-16S3
Regular price
$289.00 USD
Regular price
Sale price
$289.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Uniview 4k Network Video Recorder - NVR301-16S3 is a high-quality, reliable device that offers 4k resolution for crystal clear video recording. With 16 channels, it has a large capacity for storing footage and advanced networking capabilities. Ideal for professional security applications.
Features
- For IP cameras
- Easy range
- 16 Channels (CH)
- 64 Mbps bandwidth supported
- Maximum resolution: 8 Megapixel
- Compression: Ultra265/H.265/H.264
- Outputs: 4K HDMI & VGA
- Mouse control
- Space for 1 HDD
- WEB, CMS, Smartphone, and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Easy |
| Inputs for IP cameras | LAN port up to 16 channels |
| IP compatible cameras | UNIVIEW, ONVIF |
| Audio | 1 RCA output |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | Ultra265 / H.265 / H.264 |
| Display resolution | 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 64 Mbps downstream / 48 Mbps upstream |
| Main Stream recording | 4K / 5Mpx 4Mpx 3Mpx / 1080p / 960p 720p / D12CIF / CIF |
| Decoding | 1CH@4K or 1CH@5Mpx or 2CH@4Mpx or CH@3Mpx or 4CH@1080p or 8CH@720p or 16CH@D1 |
| Intelligent functions | Face Detection, Intrusion Detection, Line Crossing Detection, Audio Detection |
| External Backup | USB / HDD USB memory |
| Internal memory | 1 SATA HDD 3.5" of up to 6 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 (Ethernet) |
| Remote access | EZStation Web Browser, Smartphone App and PC Software |
| Power | DC 12 V |
| Dimensions / Weight | 46(Al) x 260(An) x 240 (D) mm / 0.98 Kg |
