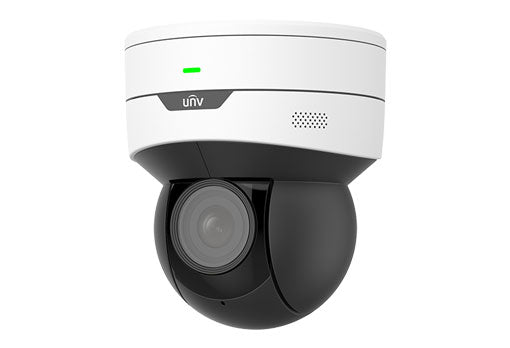

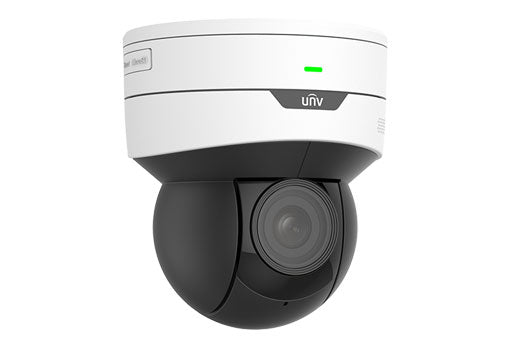

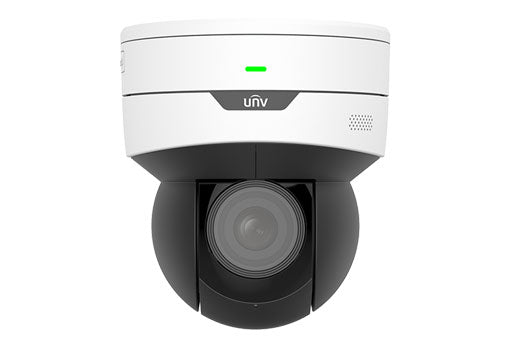

Uniview 2MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera - IPC6412LR-X5UPW-VG
Uniview 2MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera - IPC6412LR-X5UPW-VG
Capture clear and detailed surveillance footage with the Uniview 2MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera. Featuring advanced WDR technology and powerful IR capabilities, this camera delivers exceptional performance even in low-light conditions. With its compact and versatile design, it is perfect for indoor use in a variety of settings.
Features
• High quality image with 2MP,1/2.7" CMOS sensor
• 1920*1080@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 5X optical zoom allows for closer viewing of subjects
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Wi-Fi connection and easy installation
• Built-in Mic & Speaker, support two-way audio
• Alarm 1 in and 1 out
• Smart IR, up to 30m (98 ft) IR distance
Specifications
Camera | |||||
Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | ||||
Min. Illumination | Colour:0.003 lux (F1.2, AGC ON) 0 lux with IR |
||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
WDR | 120dB | ||||
S/N | >52dB | ||||
Lens | |||||
Lens type | 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens | ||||
Iris | Auto aperture | ||||
Field of View (H) | 106.9°~30.6° | ||||
Field of View (V) | 56.0°~17.7° | ||||
Field of View (D) | 131.5°~39.8° | ||||
DORI | |||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.7 | 70.9(232.5ft) | 28.4(93.0ft) | 14.2(46.5ft) | 7.1(23.3ft) | |
13.5 | 247.5(812.0ft) | 99.0(324.8ft) | 49.5(162.4ft) | 24.8(81.2ft) | |
Illuminator | |||||
IR Range | Up to 30m (98 ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
Frame Rate | Main Stream: 2MP (1920*1080),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
U-code | Support | ||||
ROI | Up to 8 areas | ||||
Video stream | Triple streams | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | 24 areas, up to 4 areas per scene | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital Noise Reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||
HLC | Support | ||||
BLC | Support | ||||
Defog | Digital Defog | ||||
Intelligent | |||||
Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
Events | |||||
Basic Detection | Motion detection, Audio detection, Tampering alarm; | ||||
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio | |||||
Audio Compression | G.711U, G.711A | ||||
Audio Bitrate | 64 Kbps | ||||
Two-way Audio | Support | ||||
Suppression | Support | ||||
Sampling Rate | 8 kHz | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
Security | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
Client | EZStation EZLive EZView |
||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
Pan & Tilt | |||||
Pan Range | 350° | ||||
Pan Speed | 0.1°/s ~ 60°/s | ||||
Preset speed: 60°/s | |||||
Tilt Range | 0° ~ 90° | ||||
Tilt Speed | 0.1° ~ 50°/s | ||||
Preset speed: 50°/s | |||||
Number of Presets | 1024 | ||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
Patrol Stay Time | 120s~1800s | ||||
Preset Image Freeze | N/A | ||||
Home Position | Support | ||||
Interface | |||||
Audio I/O | N/A | ||||
Alarm I/O | 1/1 | ||||
Serial Port | 1 RS485 | ||||
Built-in Mic | Support | ||||
Built-in Speaker | Support | ||||
WIFI | Support(IEEE802.11b/g/n) | ||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
Video output | N/A | ||||
Certification | |||||
EMC | CE-EMC (EN 55032: 2015+A1:2020; EN 61000-3-3: 2013+A1: 2019; EN IEC 61000-3-2: 2019+A1: 2021; EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09)) |
||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | ||||
General | |||||
Power | DC12V(±25%), PoE(IEEE 802.3at) | ||||
Power consumption: Max 15W | |||||
Power Interface | Ø 5.5mm coaxial power plug | ||||
Dimensions (Ø x H) | Φ129 x 143.6mm (Φ5.1" x 5.7") | ||||
Weight | 0.76kg(1.67lb) | ||||
Working Environment | -10℃~50℃(14°F ~ 122°F),Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -40℃~70℃(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing) | ||||
Surge protection | 4KV | ||||
Reset Button | Support |
