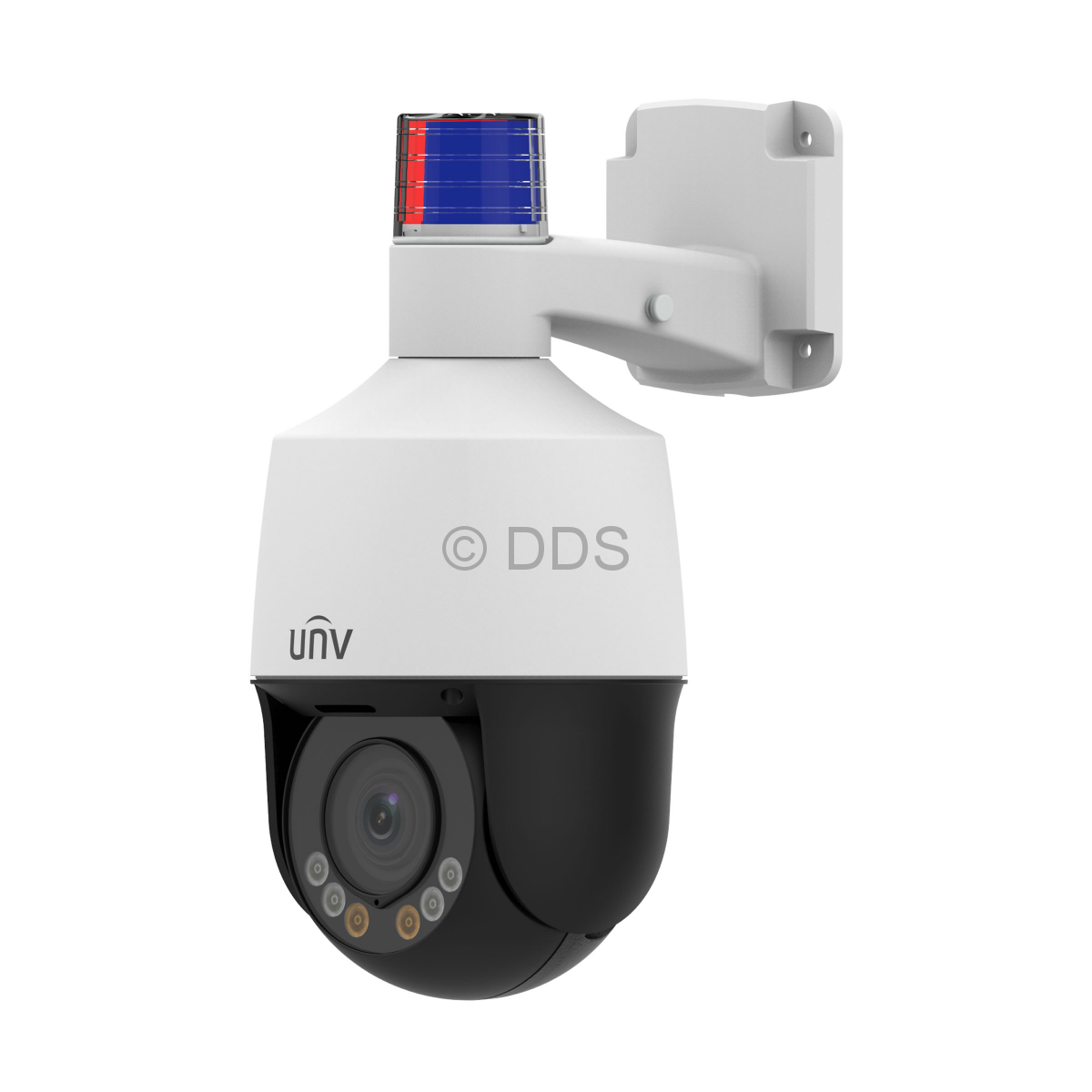

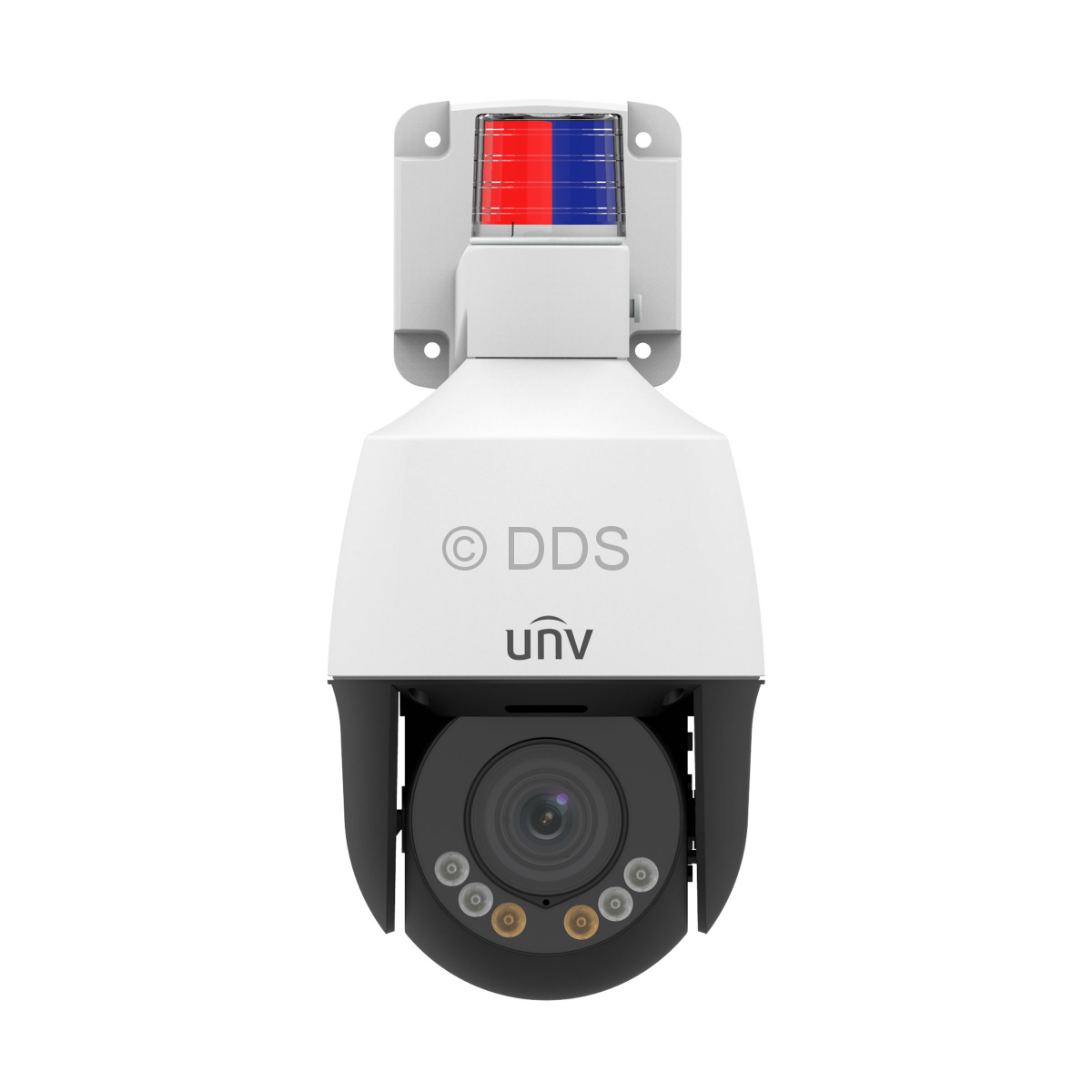

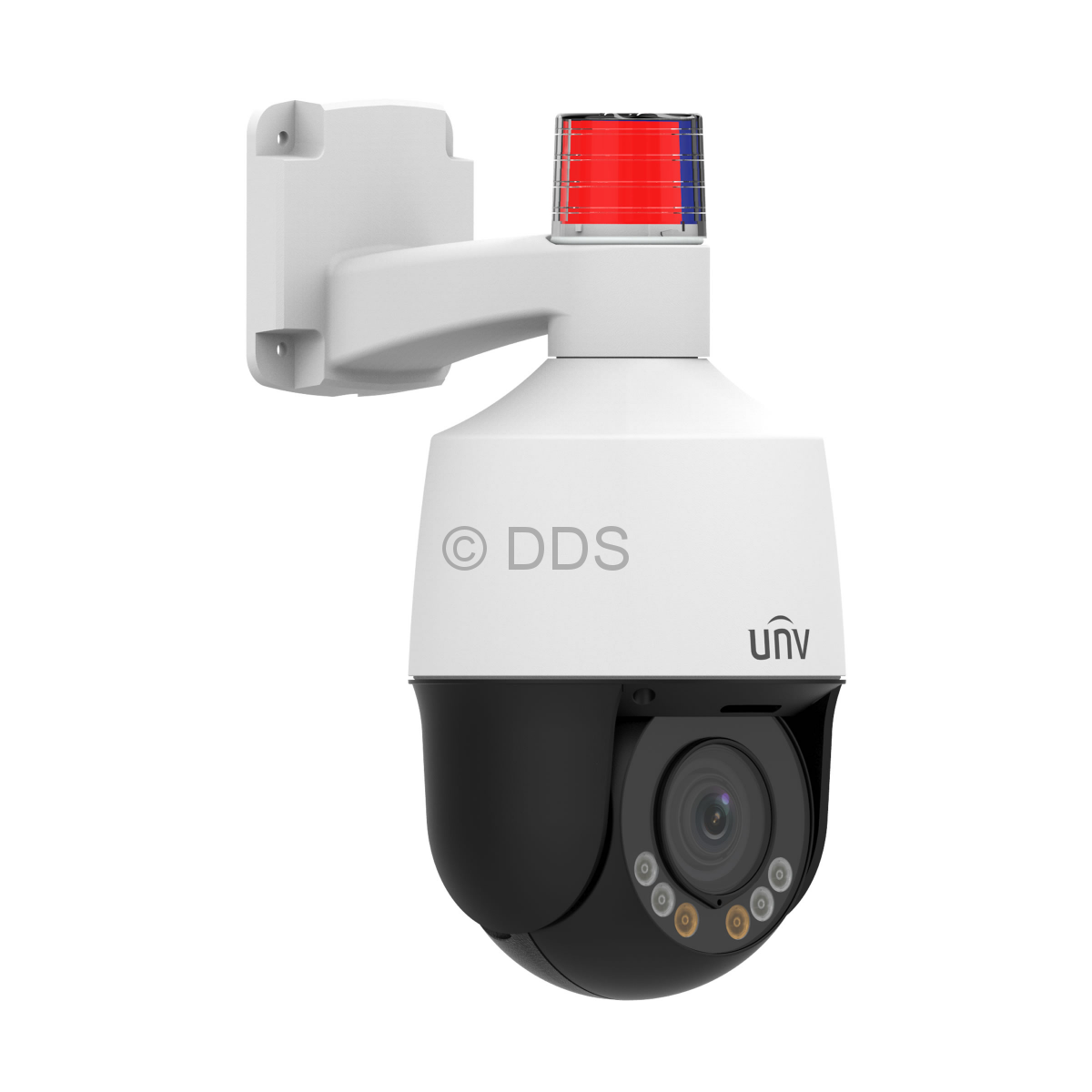

Uniview 2mp Active Deterrence Mini Ptz Camera - IPC672LR-AX4DUPKC
Uniview 2mp Active Deterrence Mini Ptz Camera - IPC672LR-AX4DUPKC
Regular price
$509.00 USD
Regular price
Sale price
$509.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Get advanced security with the Uniview 2mp Active Deterrence Mini Ptz Camera. With its intelligent active deterrence feature and high resolution 2mp camera, you can easily monitor and deter potential threats. Plus, its compact size makes it perfect for discreet placement. Trust the industry expert for reliable protection.
Features
- Active Deterrence
- Red/blue strobing light
- Up to 10m White Light range
- Play pre-recorded messages
- Two-way audio (built-in microphone and speaker)
- Resolution: 2MP (1920 x 1080), PoE
- Motorised 2.8-12mm lens, Angles 32.5° ~ 95.7° (H)
- Smart IR, up to 50m IR range
- Day/Night mode, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265, or Ultra265 compression
- Supports MicroSD card
- ONVIF Compliance (Profile G, S, and T)
- Temperature Range: -20°C to 60°C
- Wide voltage range of ±25%
- IP66 rated for weather resistance
- 4kV surge protection
- Wall bracket included
Specifications
| Feature | Specification |
|---|---|
| Image Sensor | LightHunter CMOS (1/2.8") |
| Resolution | 2MP |
| Effective Pixels (H x V) | 1920 x 1080 |
| TV System | PAL / NTSC |
| Shutter Speed | Auto/Manual, 1/1~1/100000s |
| Signal-to-noise Ratio | >52dB |
| Iris | Auto |
| Back Light Compensation | Via OSD Menu |
| Wide Dynamic Range (WDR) | 120dB |
| Digital Noise Reduction | 2D/3D |
| Gain Control | Auto |
| Sync Mode | Internal |
| White Balance | Auto/Manual |
| Lens | Motorised 2.8-12mm, 4x Optical |
| Field of View | 95.7° ~ 32.5° |
| Scanning | Progressive Scan |
| Onboard Recording | Yes, to MicroSD card up to 128GB |
| Pan & Tilt | |
| Pan Range | 345° |
| Pan Speed | 0.1°/s ~ 50°/s (Preset speed: 50°/s) |
| Tilt Range | 90° |
| Tilt Speed | 0.1° ~ 40°/s (Preset speed: 40°/s) |
| Number of Presets | 256 |
| Patrol | Preset patrol, Route patrol |
| DORI | |
| Detect | 43.4 - 186.2m |
| Observe | 17.4 - 74.5m |
| Recognise | 8.7 - 37.2m |
| Identify | 4.3 - 18.6m |
| Day/Night Mode | IR Cut Filter (Smart IR) |
| Minimum Illumination | Colour 0.001 Lux, 0 Lux with IR on |
| IR Range | 45-50m |
| IR Control | CDS Auto |
| White Light Range | 8-10m |
| Network | |
| Ethernet | RJ45 10/100 |
| Supported Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| ONVIF | Supports ONVIF (Profile G, Profile S, Profile T) |
| POE | Yes (30W POE injector required) |
| Main Stream | 1920x1080 @ 30fps |
| Sub Stream | 720x576 @ 30fps |
| General | |
| Power | 12V DC (+/- 25%) |
| Housing | Metal |
| Power Consumption | Max 16W |
| Operating Temperature | -20°C ~ +65°C |
| Operating Humidity | 0% - 95% RH |
| Ingress Protection | IP66 |
| Approvals | CE / FCC / UL |
| Weight | 1.13kg |
| Interface | |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Reset Button | Yes |
| PTZ Control | ONVIF |
