TriStar Security Products

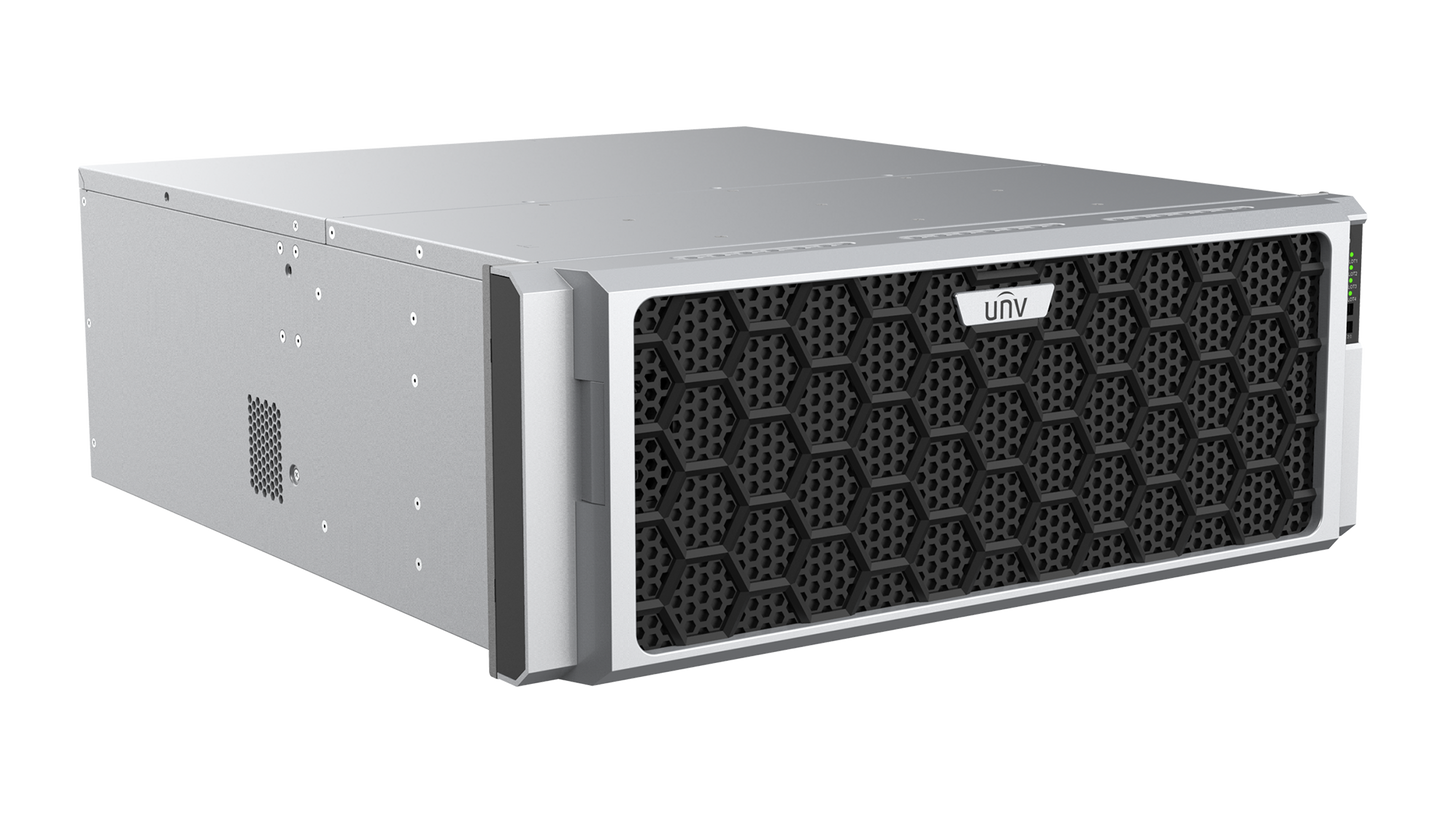

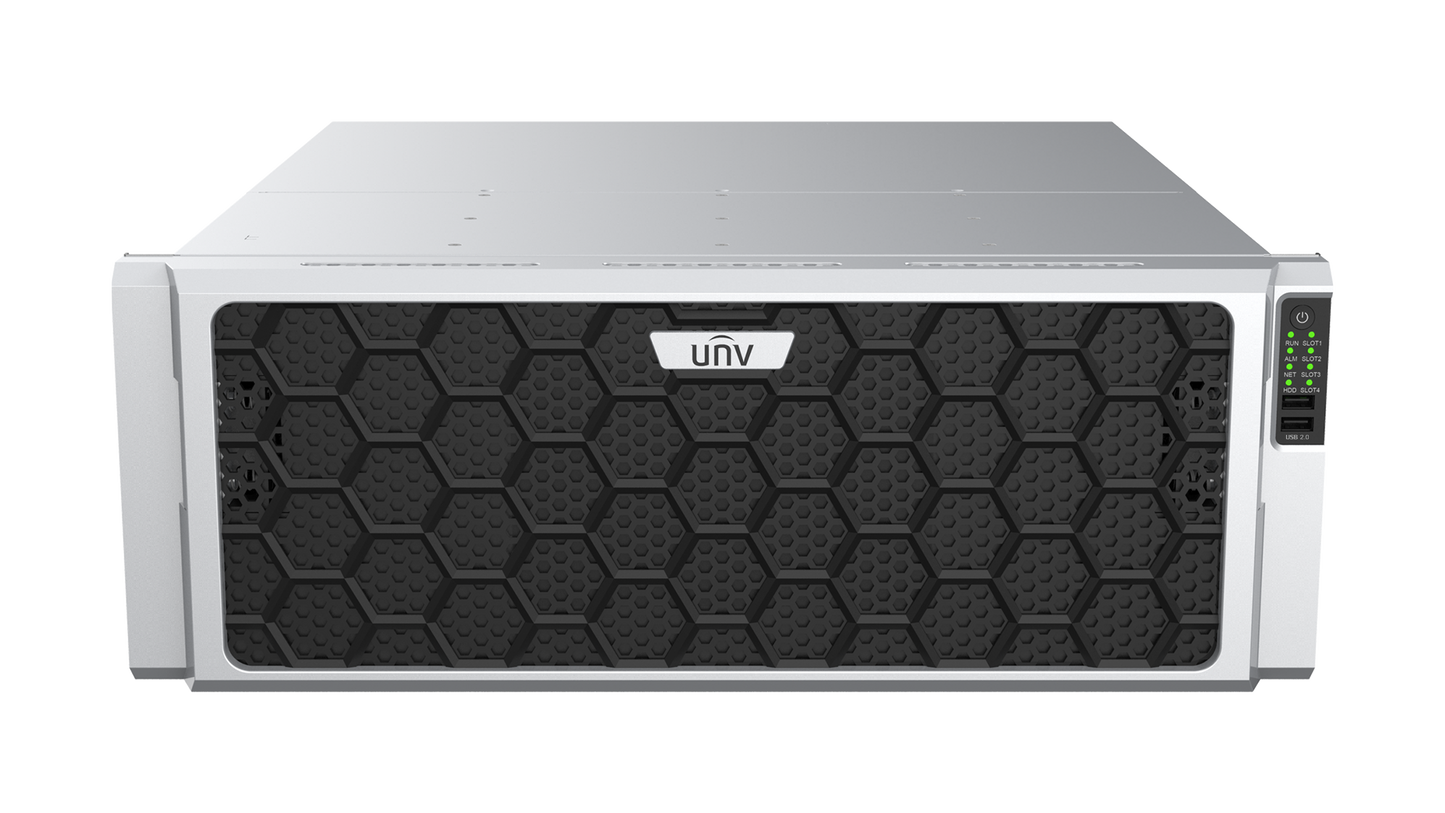

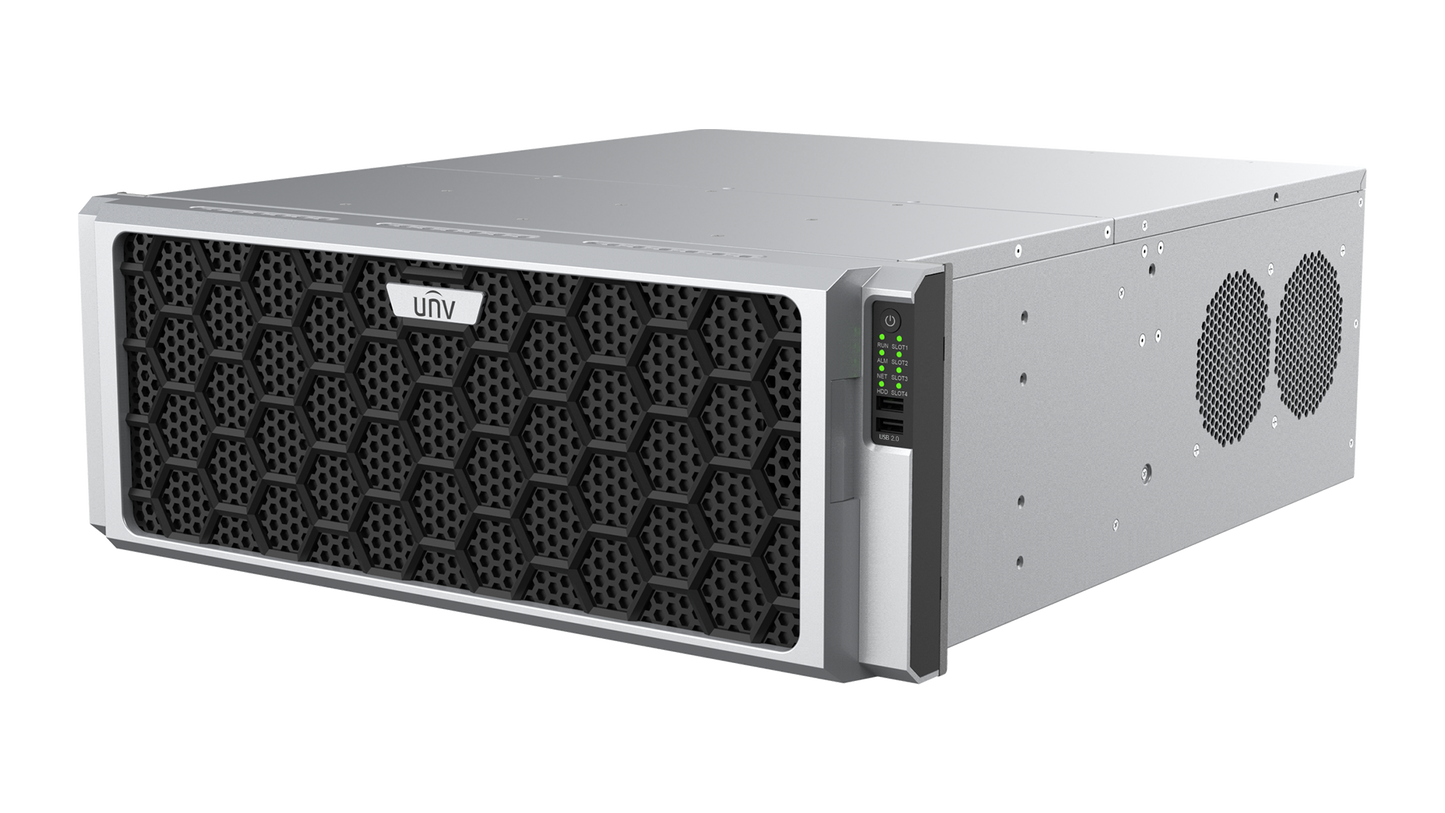

Uniview 24 HDDs 128-ch 4U Network Video Recorder - NVR824-256-R-IX-16G

Uniview 24 HDDs 128-ch 4U Network Video Recorder - NVR824-256-R-IX-16G

Regular price $54,999.00 USD
Regular price Sale price $54,999.00 USD
Sale Sold out
Shipping calculated at checkout.

The Uniview 24 HDDs 128-ch 4U Network Video Recorder is a high-performance NVR, perfect for large-scale surveillance systems. With 24 HDDs and 128 channels, it offers ample storage and recording capacity. Its compact 4U design makes it easy to install and maintain. Plus, with its advanced features like IX technology and 16GB RAM, it ensures seamless and reliable video management. Trust the expertise of Uniview for all your surveillance needs.

Features:

• Support Ultra 265/H.265/H.264 video formats
• 128/256-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
• Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
• HDMI1, HDMI2 and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• Redundant power supply optional
• Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
• Support 2 miniSAS Interfaces
• Support 12V power output
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare

Specifications:

Decoding
Decoding Format Ultra 265, H.265, H.264
Decoding Capability 3 x 12MP@30, 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1
Decoding Capability Description *. The resolution of each channel cannot exceed 4096 pixels in length or width., *. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth 768Mbps
Outgoing Bandwidth 768Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser(Plugin) Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)
Video/Audio Input
IP Video Input 256-ch
RCA Audio Input 1-ch
Video/Audio Output
HDMI Output 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output 1-ch
Liveview Display VGA:1/4/6/8/9/16/25/36, HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Two-way Audio
Two-way Audio 1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot 128-ch snapshot, up to 4K resolution
Recording
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local 16-ch
Smart
VCA Detection by IPC Face Detection, face detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
Smart by NVR Face Detection, face detection, Smart Intrusion Prevention (SIP), Behavior Analysis, (At same channel, only one smart function by NVR can be enabled simultaneously)
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
Smart by IPC All channels (up to 64 images/s in total)Face Detection, face detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Search by Image Support
Vehicle Picture Library Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR 64-ch 128-ch
Behavior Analysis with normal cameras 64-ch 128-ch
Behavior Analysis Type No Chef Hat Detection, No Work Clothes Detection, Smoking Detection, Smoke and Fire Detection, Calling Detection, Rat Detection, Long Stay Detection, Fall Detection, Fight Detection, Absence Detection, Climbing Detection, Sleep on Duty Detection, People Counting, No Reflective Clothing Detection
Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded
GUI Language
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 24 SATA interfaces
Capacity Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Group Support
Redundant Storage Support
Disk Array Type RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap Support
External Interface
Network Interface 4 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0
RS485 1
RS232 1
Alarm In 24-ch
Alarm Out 8-ch
eSATA 1
miniSAS 2
Power Output 12V
Power Supply AC 100 ~ 240 V
Power Switch Support
Redundant Power Supply Support
Working Environment
Working Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 300W
Dimensions
Weight (without HDD) ≤ 12.5Kg (27.56lb)
Height 4U
Dimensions 484.6mm × 533mm × 175.5mm (19.1"×21.0"×6.9")
Certification
Certification CE; FCC; UL; RoHS; WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
