TriStar Security Products

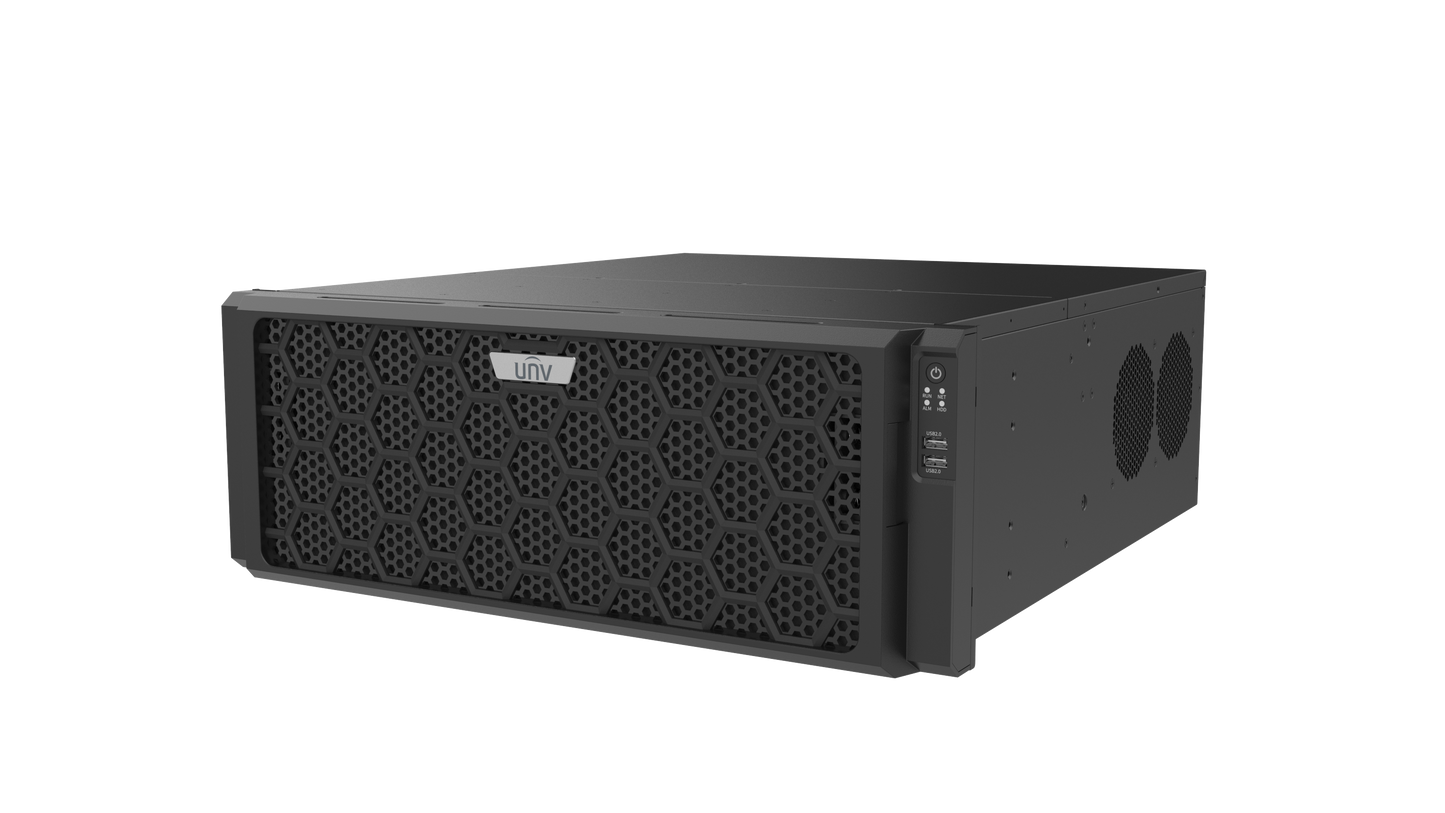

Uniview 24 HDDs 128-ch 4U Network Video Recorder - NVR524-128E

Uniview 24 HDDs 128-ch 4U Network Video Recorder - NVR524-128E

Regular price $11,539.00 USD
Regular price Sale price $11,539.00 USD
Sale Sold out
Shipping calculated at checkout.

The Uniview NVR524-128E is the ultimate network video recorder with 24 HDDs and 128 channels in a 4U form factor. Increase your storage capabilities and easily manage a large number of cameras with this powerful device. Trust in Uniview's industry expertise for reliable and efficient surveillance.

Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 128/256-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
  • Support 2-ch HDMI, 2-ch VGA, HDMI1 at up to 8K(7680x4320) resolution
  • HDMI1/ VGA1 and HDMI2/VGA2 independent outputs provided
  • Up to 32 Megapixels resolution recording
  • Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
  • Support 12V power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • Support N+1 Hot spare

Specifications:

Decoding
Decoding Format Ultra 265, H.265, H.264
Decoding Capability 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30, 128 x D1
Decoding Capability Description *. The resolution of each channel cannot exceed 8640 pixels in length or width., *. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth 640Mbps
Outgoing Bandwidth 640Mbps
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser(Plugin) Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)
Video/Audio Input
IP Video Input 128-ch
RCA Audio Input 1-ch
Video/Audio Output
Video Output Support 2-ch HDMI, 2-ch VGA, HDMI1 and VGA1 simultaneous output, HDMI2 and VGA2 simultaneous output, HDMI1/VGA1 and HDMI2/VGA2 independent output
HDMI Output HDMI1: 8K(7680x4320)/30Hz, 4K(3840x2160)/60Hz, 1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; HDMI2: 4K(3840x2160)/60Hz, 1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output 1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output 2-ch
Liveview Display 1/4/6/8/9/16/25/36/64
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Two-way Audio
Two-way Audio 1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot 16-ch snapshot, up to 4K resolution
Recording
Recording Resolution 32MP/16MP/12MP/8MP/6MP/5MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local 16-ch
Smart
VCA Detection by IPC Face Detection, face detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Smart by IPC All channels (up to 32 images/s in total)Face Detection, face detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Alarm
General Alarm Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection, People Present Alarm
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
GUI Language
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 24 SATA Interfaces
Capacity Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Array Type RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap Support
External Interface
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0
RS485 1
RS232 1
Alarm In 16-ch
Alarm Out 10-ch
eSATA 1
Power Output 12V
Power Supply AC 100 ~ 240 V
Power Switch Support
Working Environment
Working Temperature -10 °C ~ 55 °C (14 °F ~ 131 °F)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 50W
Dimensions
Weight (without HDD) ≤ 10Kg (22.05lb)
Dimensions 485mm × 539mm × 175mm (19.1"×21.2"×6.9")
Certification
Certification CE; FCC; RoHS; WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
