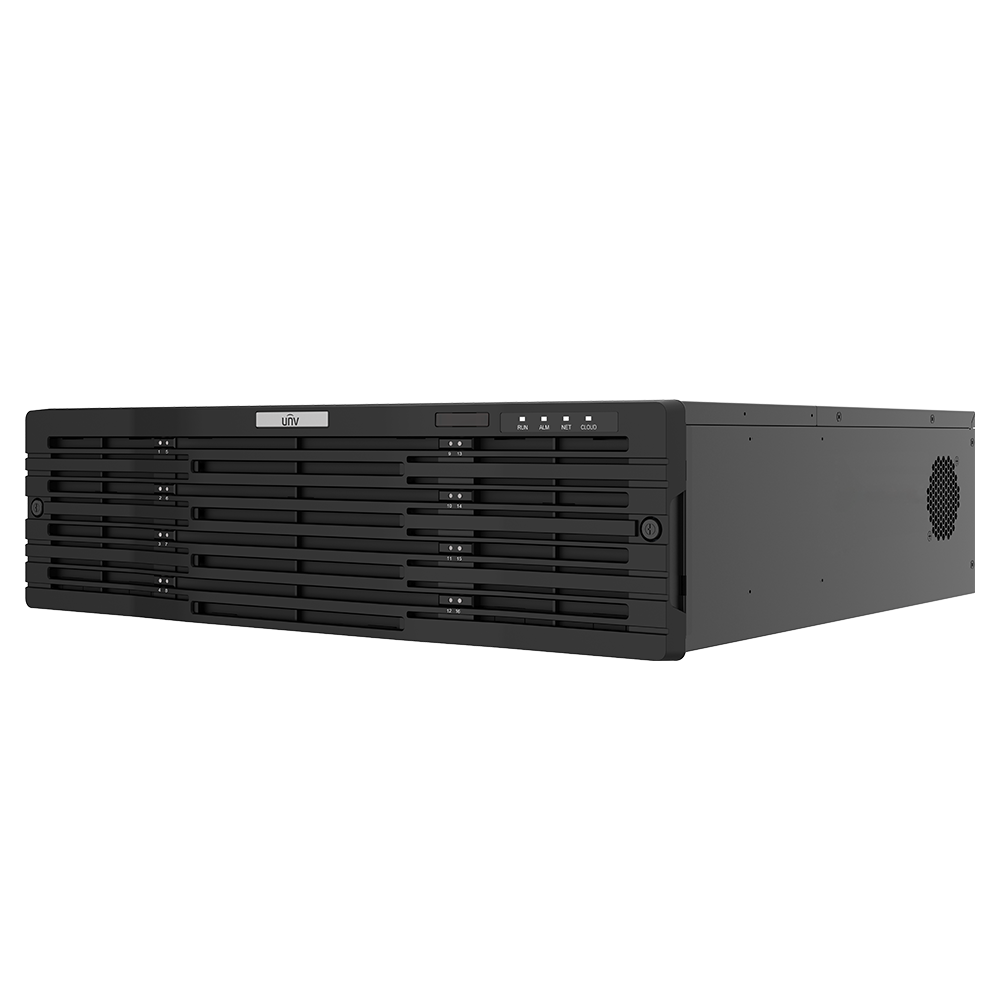

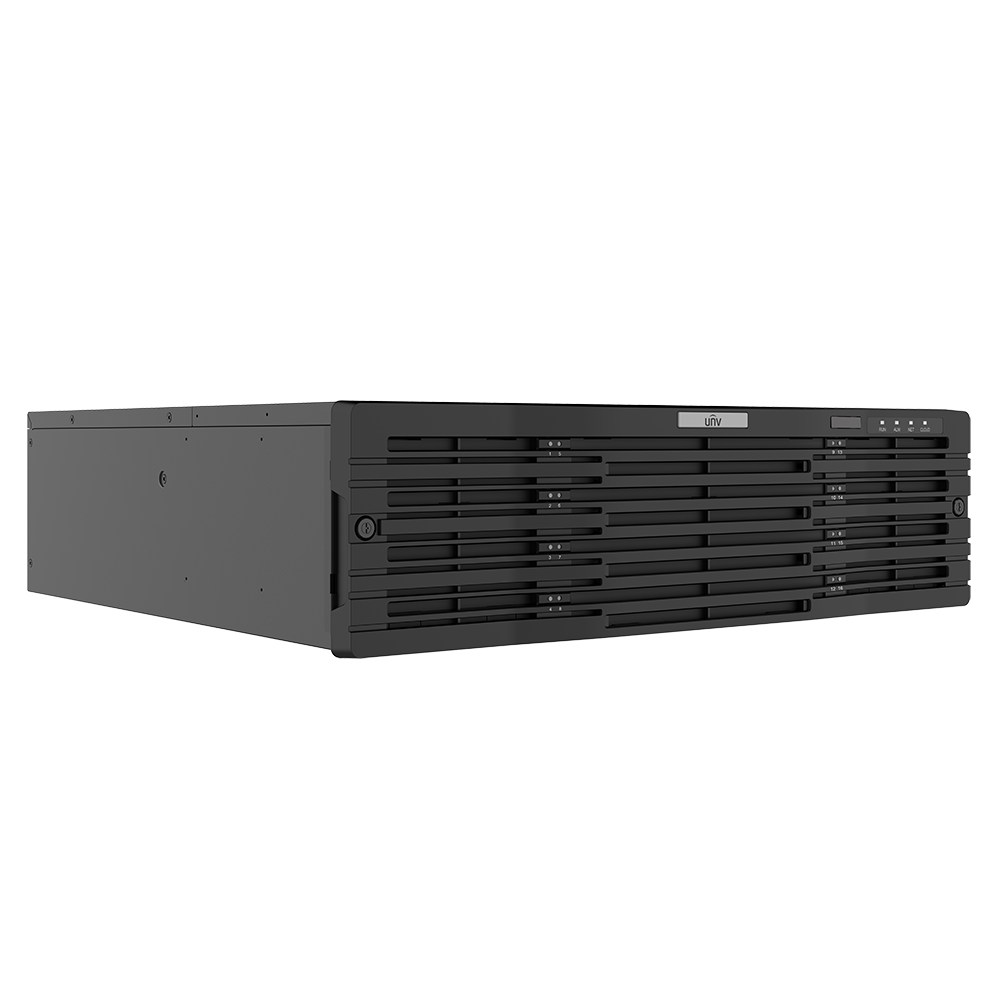

Uniview 16 HDDs 64-ch 3U Network Video Recorder - NVR516-64

Uniview 16 HDDs 64-ch 3U Network Video Recorder - NVR516-64

Regular price $5,849.00 USD
Regular price Sale price $5,849.00 USD
Sale Sold out
Shipping calculated at checkout.

Experience the cutting-edge technology of the Uniview 64-ch 3U Network Video Recorder. With 16 HDDs, it offers maximum storage for all your video recording needs. Easily manage and store large amounts of data with this reliable and efficient NVR.

Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 64/128-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
  • Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • HDMI1, HDMI2 and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Redundant power supply optional
  • Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
  • Support 2 miniSAS Interfaces
  • Support 12V power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • Support N+1 Hot spare

Specifications:

Decoding
Decoding Format Ultra 265, H.265, H.264
Decoding Capability 4 x 12MP@20, 4 x 4K@30, 16 x 1080P@30, 36 x 720P@30, 64 x D1
Decoding Capability Description *. The resolution of each channel cannot exceed 4096 pixels in length or width.
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth 384Mbps
Outgoing Bandwidth 384Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser(Plugin) Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)
Video/Audio Input
IP Video Input 64-ch 128-ch
BNC Audio Input 1-ch
Video/Audio Output
HDMI Output 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz (HDMI audio output is not supported)
VGA Output 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
BNC Audio Output 1-ch
Liveview Display VGA:1/4/6/8/9/16/25/36,
HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Two-way Audio
Two-way Audio 1-ch, BNC(Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot 64-ch snapshot, up to 4K resolution 128-ch snapshot, up to 4K resolution
Recording
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local 16-ch
Smart
VCA Detection by IPC Face Detection, face detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
Smart by IPC All channels (up to 32 images/s in total)Face Detection, face detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded
GUI Language
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 16 SATA Interfaces
Capacity Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Array Type RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap Support

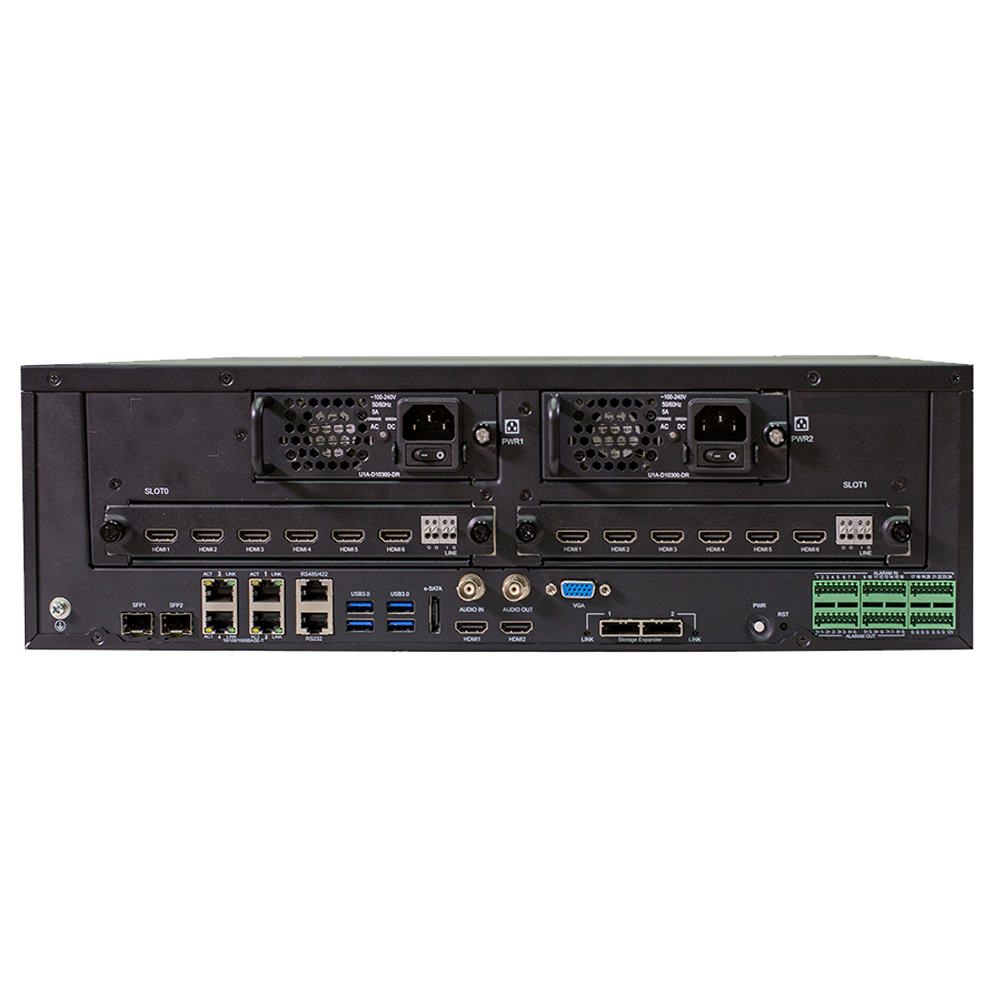

External Interface
Network Interface 4 RJ45 10M/100M/1000M self-adaptive Ethernet Interface, 2 1000M SFP Ethernet Interface
USB Rear panel: 4 x USB3.0
RS485 1
RS232 1
Alarm In 24-ch
Alarm Out 8-ch
eSATA 1
miniSAS 2
Power Output 12V
Power Supply AC 100 ~ 240 V
Power Switch Support
Redundant Power Supply Support
Working Environment
Working Temperature -10 °C ~ 55 °C (14 °F ~ 131 °F)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 50W
Dimensions
Weight (without HDD) ≤ 10Kg (22.05lb)
Dimensions 482mm ×477mm × 131mm (19.0"×18.8"×5.2")
Certification
Certification CE; FCC; UL; RoHS; WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
