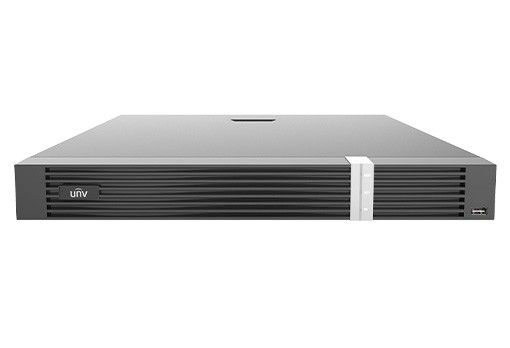

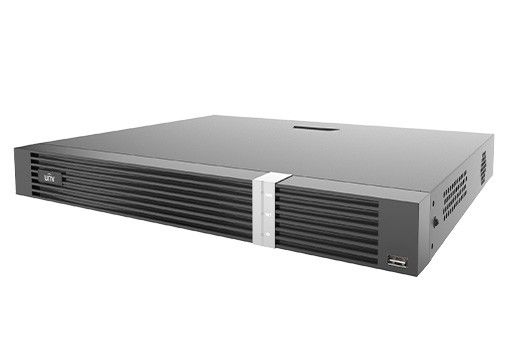

Uniview 16 Channels Network Video Recorder - NVR302-16E2-P16-IQ

Uniview 16 Channels Network Video Recorder - NVR302-16E2-P16-IQ

$1,169.00 USD
$1,169.00 USD
Sale Sold out
Shipping calculated at checkout.

The Uniview 16 Channels Network Video Recorder (NVR302-16E2-P16-IQ) is a powerful tool for video surveillance. With support for up to 16 channels, you can easily monitor and record your surveillance footage. Built with cutting-edge technology, this NVR provides high-quality and reliable performance. Enhance your security and gain peace of mind with the Uniview NVR302-16E2-P16-IQ.

Features

  • Support Ultra H.265/H.265/H.264 video formats
  • 8/16-channel input
  • Plug & Play with 8/16 independent PoE network interfaces
  • Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • Support HDMI and VGA simultaneous output
  • Up to 12 Megapixels resolution recording
  • 2 SATA HDDs, Up to 10TB for each HDD
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade


Specifications

Attribute Details
SKU NVR302-16E2-P16-IQ
Manufacturer Uniview
NDAA Compliant Yes
IP Channels 16 Channels
Harddrive Size No HDD
Protocols Uniview Protocols, ONVIF Protocols
Features Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, Supports the Full HD Output (HDMI), Two-way Audio
Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Compression Ultra 265
Bandwidth Incoming: Smart Off: 320Mbps, Smart On: 160Mbps; Outgoing: Smart Off: 320Mbps, Smart On: 160Mbps
Operating Temperature 10°C~ +55°C (+14°F~ +131°F)
Dimensions 380mm × 318mm × 53mm (15.0" × 12.5" × 2.1")
Voltage 52V DC/4.6A
Power Consumption ≤ 20 W
Network 16 RJ-45 10M/100M self-adaptive Ethernet Interface
SATA 2 SATA interfaces
USB Front panel: 1 x USB2.0; Rear panel: 1 x USB3.0
Audio 1-ch, RCA
Compression Supported Yes
DDNS Functionality Yes
Supports the Full HD Output (HDMI) Yes
Two Way Audio Yes
H.264 Compression Yes
H.265 Compression Yes
