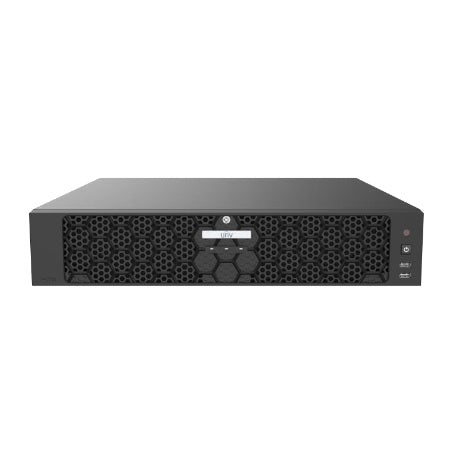

Uniview 128 Channel NVR 8 SATA - NVR508-128E-R

Uniview 128 Channel NVR 8 SATA - NVR508-128E-R

$6,009.00 USD
$6,009.00 USD
Sale Sold out
Shipping calculated at checkout.

The Uniview 128 Channel NVR 8 SATA - NVR508-128E-R is a powerful network video recorder designed for large-scale surveillance systems. With its 128 channel capacity and 8 SATA ports, it can support a vast number of cameras and store high-resolution footage. Its advanced features and reliable performance make it a trusted choice for security professionals.

Features

  • Uniview
  • NVR for IP cameras
  • Prime range
  • 128 CH
  • 384 Mbps bandwidth supported
  • Maximum resolution 32 Megapixel
  • 2 x RJ45
  • Compression Ultra265/H.265/H.264 -2 VGA and HDMI output 4K
  • Intelligent functions, Facial Recognition and Metadata per camera in 16 Channels
  • Space for 8 HDD
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible


Specifications

Brand Uniview
Range Prime
IP compatible cameras UNIVIEW, ONVIF
Bidirectional audio 1 input / 1 RCA output
Video outputs 2 HDMI 4K, 2 VGA
Video compression format Ultra H.265 / H.265 / H.264
Network interface 2 RJ-45 10M / 100M / 1000M
Display resolution 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768
Total bandwidth 384 Mbps downstream / 384 Mbps upstream
Main Stream recording 32Mpx / 16Mpx / 12Mpx / 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF
VCA detection by camera Intrusion detection, Cross line detection, Entry area, Exit area, Blur detection, Scene change detection, Object left behind, Object removed, Auto tracking, UMD (Ultra Motion Detection)
VCA search Motor vehicle search, non-motor vehicle search, human body search, general search, image search,
head count report
Intelligent functions per camera 16 channels
Vehicle Image Library Up to 5 vehicle image libraries, with up to 25.000 images in total
Alarms 16 Inputs / 10 Outputs
Recording method Manual, programmed, motion detection
External Backup USB / HDD USB memory
Internal memory 8 SATA HDD 3.5" of up to 16 TB (not included)
Communication 2 x USB 2.0 / 2 x RJ45 (Ethernet)
Remote access Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Power 100~240V AC / 50W
Dimensions / Weight 442mm × 448mm × 93mm / 6 Kg
