TriStar Security Products

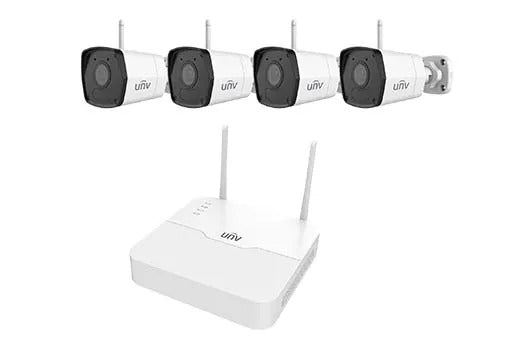

Uniview 1+4 WiFi Bullet Kit - KIT/NVR301-04LS3-W/4*2122LB-ABF28WK-G

Uniview 1+4 WiFi Bullet Kit - KIT/NVR301-04LS3-W/4*2122LB-ABF28WK-G

Regular price $839.00 USD
Regular price Sale price $839.00 USD
Sale Sold out
Shipping calculated at checkout.

The Uniview 1+4 WiFi Bullet Kit provides a convenient and reliable solution for home or small business security. With the included KIT/NVR301-04LS3-W and four 2122LB-ABF28WK-G wireless bullet cameras, you have everything you need to easily set up and monitor your property. Ensure peace of mind with Uniview.

Features

NVR301-04LS3-W

  • Embedded WiFi Module with high-performance and high stability
  • Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA synchronous outputs provided
  • Up to 1080P resolution recording
  • 1 SATA HDD, Up to 6TB for each HDD
  • Support cloud upgrade



IPC2122LB-AF28WK-G

  • High quality image with 2MP, 1/2.9"CMOS sensor
  • 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 128 G Micro SD card
  • IP67 protection
  • 3-Axis


Specifications

Model NVR301-04LS3-W
Video/Audio Input
IP Video Input 4-ch
Network
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 40Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS
Video/Audio Output
HDMI/VGA Output HDMI:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution 1080P/960P/720P/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 4-ch
Live View Display 1/4
Corridor Mode Screen 3/4
Snapshot
Event Snapshot 1-ch snapshot, up to D1 resolution
Decoding
Decoding format Ultra 265/H.265/H.264
Live view/ Playback 1080p/960p/720p/D1/2CIF/CIF
Capability 4 x 1080P@30
Hard Disk
SATA 1 SATA interface
Capacity Up to 6TB for each HDD
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel:2 x USB2.0
RS232 NA
RS485 NA
Alarm In NA
Alarm Out NA
Wi-Fi
Frequency 2.4GHz
Transmission Rate 150Mbps
Wireless Standards IEEE 802.11b/g/n
General
Power Supply 12V DC
Power Consumption: ≤ 9 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 205mm × 205mm × 47mm (8.1" ×8.1"×1.9")
Weight ( without HDD ) ≤0.58Kg(1.28lb)
Certification
Certification UL
CE
FCC
RoHS
WEEE
Model IPC2122LB-AF28WK-G
Camera
Sensor 1/2.9", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.01 Lux (F2.0 AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1~1/100000 s
Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N >52dB
WDR DWDR
Lens
Lens Type 2.8mm and 4.0mm @2.0, Fixed-focal
Lens Mount M12
Angle of view(H) 101.1°
Angle of View (V) 55.0°
Angle of View (O) 111.0°
DORI
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 45.0 18.0 9.0 4.5
Illuminator
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~6 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Events
Basic Detection Human body detection, Motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 128GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Wi-Fi
Wireless Standards IEEE802.11b/g/n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20 MHz Support
Modulation Mode 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Security 64/128-bit WEP,  WPA-PSK/WPA2-PSK
Transmit Power 802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @ 54Mbps
802.11n: 12.5±1.5dBm @150Mbps
Receive Sensitivity 802.11b: -90dBm @11Mbps (Typical)
802.11g: -75dBm @54Mbps (Typical)
802.11n: -74dBm @150Mbps (Typical)
Transmission Rate 802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps
Interface
Network 1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Certification
EMC FCC: FCC Part 15
Safety CE: EN 60950-1
UL: UL60950-1
IEC 60950-1
General
Power DC 12V±25%
  Power consumption: Max 4.0 W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (L × W × H) 172 × 76 ×72 mm (6.8” × 3” × 2.8”)
Weight 0.25 kg (0.55 lb)
Material Metal + Plastic
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection 4KV
Reset Button Supported
Ingress Protection Ingression protection: IP67
