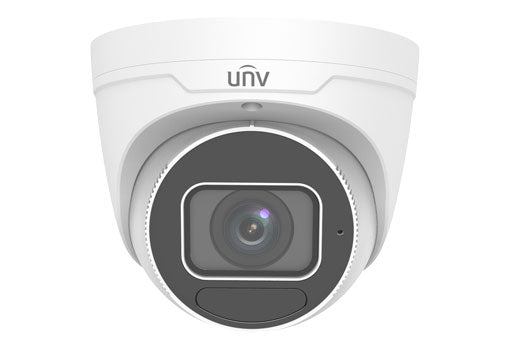

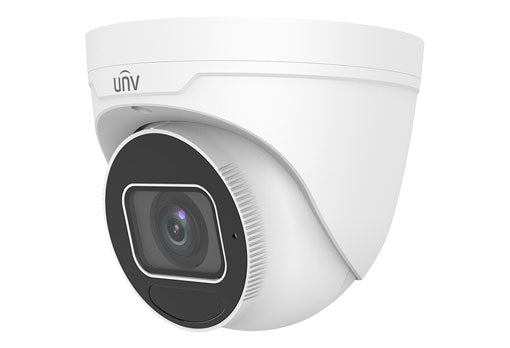

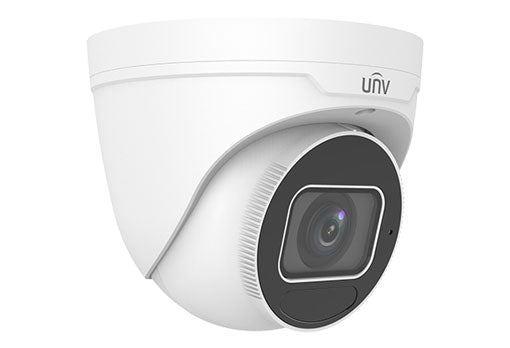

Uniview 4MP Lighthunter WDR IR Network Dome Camera - IPC3634SE-ADZK-I0
Uniview 4MP Lighthunter WDR IR Network Dome Camera - IPC3634SE-ADZK-I0
Regular price
$1,409.00 USD
Regular price
Sale price
$1,409.00 USD
Unit price
/
per
The Uniview 4MP Lighthunter WDR IR Network Dome Camera - IPC3634SE-ADZK-I0 is designed for 24/7 surveillance, providing clear images even in low light conditions. Featuring advanced WDR technology, this camera delivers balanced and detailed images in high contrast environments. With its infrared night vision capabilities, it ensures round-the-clock security for your property.
Features
- High quality image with 4MP, 1/1.8’’ CMOS sensor
- 2688*1520 @ 30fps in the main stream
- Supports Ultra 265, H.265, H.264, MJPEG compression
- Smart intrusion prevention with false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area detection
- People Counting feature for monitoring people flow and crowd density, suitable for various statistical scenarios
- LightHunter technology ensures ultra-high image quality in low light environments
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- DC12V or PoE (IEEE 802.3af) power supply
- Wide voltage range of ±25% in DC
- Audio: 1 input and 1 output, Alarm: 2 inputs and 1 output
- Micro SD support, up to 256GB
Specifications
Camera | |||||
Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||||
Min. Illumination | Colour:0.0005 lux (F1.2, AGC ON) 0 lux with IR |
||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | ||||
WDR | 120dB | ||||
S/N | >56dB | ||||
Lens | |||||
Lens type | 2.8~12mm@F1.2, AF automatic focusing and motorized zoom lens | ||||
Iris | Fixed | ||||
Field of View (H) | 42.6°~113.7° | ||||
Field of View (V) | 24.1°~59.0° | ||||
Field of View (D) | 4.12°~74.38° | ||||
DORI | |||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.8 | 68.0(223.0ft) | 27.2(89.2ft) | 13.6(44.6ft) | 6.8(22.3ft) | |
12 | 166.2(545.2ft) | 66.5(218.1ft) | 33.2(109.0ft) | 16.6(54.5ft) | |
Illuminator | |||||
IR Range | Up to 40m (131 ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
ROI | Up to 8 areas | ||||
Video stream | Triple streams | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 4 areas per scene | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
HLC | Support | ||||
BLC | Support | ||||
Defog | Digital Defog | ||||
Intelligent | |||||
Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
People counting | Support people flow counting and crowd density monitoring | ||||
Events | |||||
Basic Detection | Motion detection, Audio detection, Tampering alarm | ||||
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
||||
Audio | |||||
Audio Compression | G.711U, G.711A | ||||
Audio Bitrate | 64 Kbps | ||||
Two-way Audio | Support | ||||
Suppression | Support | ||||
Sampling Rate | 8KHz | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
Security | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
Client | EZStation EZLive EZView |
||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
Interface | |||||
Audio I/O | 1/1 | ||||
Alarm I/O | 2/1 | ||||
Serial Port | N/A | ||||
Built-in Mic | Support | ||||
Built-in Speaker | N/A | ||||
Built-in Heater | N/A | ||||
Video output | 1 BNC | ||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
Certification | |||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
||||
General | |||||
Power | DC12V(±25%), PoE(IEEE 802.3af) | ||||
Power consumption: Max 10W | |||||
Dimensions (Ø x H) | Φ129mm x 110mm (Φ5.1’’ x 4.3’’) | ||||
Weight | 0.8Kg(1.76lb) | ||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
Surge protection | 6KV | ||||
Reset button | Support |
