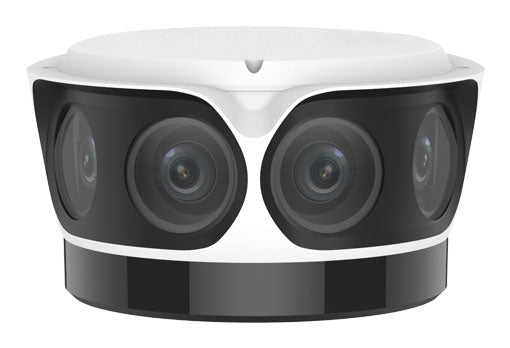

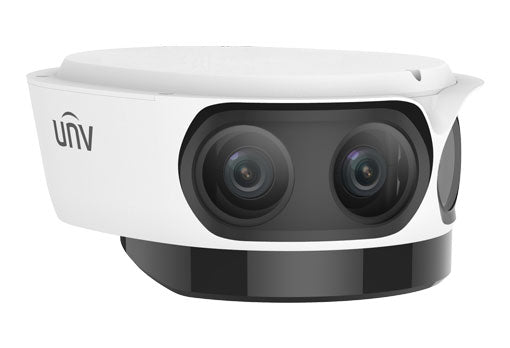

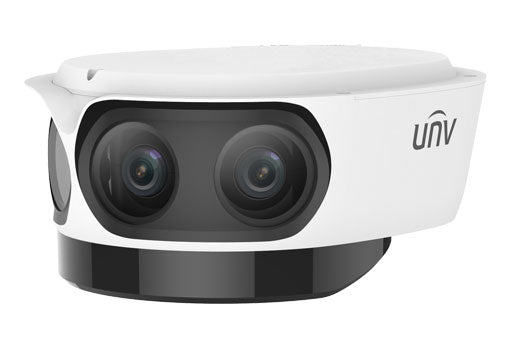

Uniview 4K Starlight OmniView Network Camera - IPC8542ER5-DUP

Uniview 4K Starlight OmniView Network Camera - IPC8542ER5-DUP

Regular price $5,959.00 USD
Regular price Sale price $5,959.00 USD
Sale Sold out
Shipping calculated at checkout.

Experience unparalleled clarity with the Uniview 4K Starlight OmniView Network Camera - IPC8542ER5-DUP. With advanced technology and a 4K resolution, capture crystal clear footage day or night. The 180-degree panoramic view provides comprehensive coverage, making it the perfect choice for any surveillance needs.

Features:

Optics

  • Fifth-generation infrared technology, up to 50m (164ft) IR distance
  • Starlight illumination
  • Smart IR
  • 2D/3D DNR (Digital Noise Reduction)
  • 120dB true WDR
  • Support a horizontal viewing angle of 180°

Compression

  • Ultra H.265,H.265, H.264, MJPEG
  • Triple streams
  • Customized OSD
  • 4096×1800@30fps supported

Network

  • ONVIF Conformance

Structure

  • AC/DC24V or PoE(IEEE 802.3at) power supply
  • Wide voltage range of ±25% in AC, 18V~48V in DC
  • Micro SD, up to 256 GB
  • Alarm 2 in and 1 out, Audio 1 in and 1 out
  • IP67 ingress protection

Specifications:

Camera
Sensor 1/1.8" progressive scan, 2.0 megapixel, CMOS
Lens 4×4.2mm lens
Iris F1.8
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4.2 50.4 (165.4ft) 20.2(66.3ft) 10.1(33.1ft) 5.0(16.4ft)
Field of View (H) 180°
Field of View (V) 80°
Field of View (D) 221.4°
Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s
Adjustment angle Pan: -90°~90° Tilt: -45°~60°
Min. Illumination Colour: 0.002lux (F1.8,AGC ON)
0lux with IR
WDR 120dB
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
IR Range Up to 50m (164ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 4096×1800:Max. 30 fps;
Sub Stream: 1920×832:Max. 30 fps;
Third Stream: 1280×560: Max. 30 fps
Video Bit Rate 128 Kbps~16 Mbps
ROI Supported
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas(8 blacks/8 mosaics)
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC Support
BLC Support
Smart
Behavior Detection Cross Line detection, Intrusion detection, Motion detection
Primary-Secondary linkage Auto/manual
Exception Detection And Statistics Object Removed, Object Left Behind, Defocus, Scene Change
Recognition Audio detection
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Two-way Audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZLive
Ezview
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/O Audio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 2/1
Network 2*10M/100M/1000M Base-TX Ethernet
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General

Power

AC24V±25%/DC24V support 18V-48V, PoE(IEEE 802.3at)
Power consumption: Max 24W
Dimensions (Ø x H) 259mmx211mmx115mm(10.2”×8.3”×4.5”)
Weight 2.38kg(5.25lb)
Working Environment –40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing)
Storage Environment –40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing)
surge protection 6KV
